Tauira |

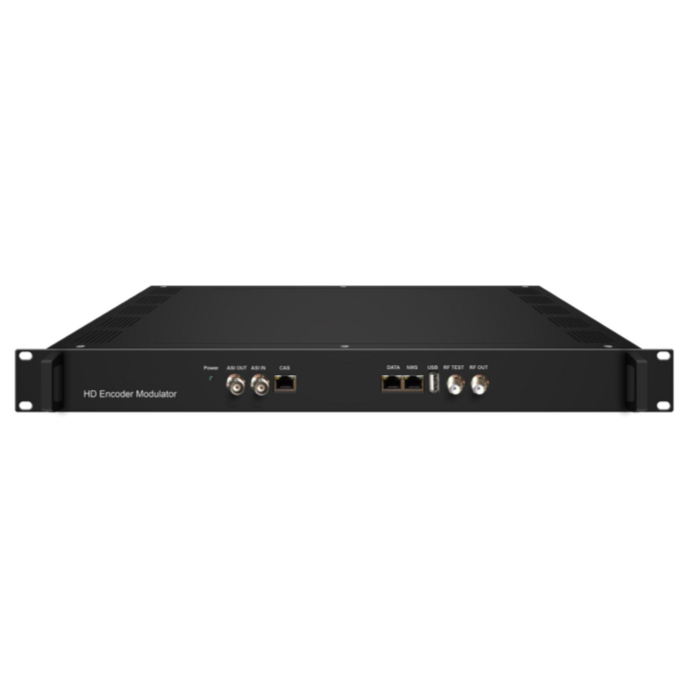

8/16/24 HDMI Encoder Modulator |
Whakauru |
8/16/24 Ko nga whakaurunga HDMI mo te kowhiringa (he HDMI ranei me nga whakauru whakauru Tuner rereke, tirohia nga korero i raro i te aratohu ota) 1 ASI mo te re-mux 1 tāuru Pūpāpāho USB mō te re-mux ('xxx.ts' ataata) 128 IP whakauru mo te UDP me te RTP, te tauranga GE, RJ45 |
Ataata |
Whakatau |
Whakauru |
1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i, 1280×720_60P, 1280×720_50P, 720×576_50i,720×480_60i, |
Putanga |
1920×1080_30P, 1920×1080_25P, 1280×720_30P, 1280×720_25P, 720×576_25P,720×480_30P, |
Whakawaehere |
HEVC/H.265, MPEG-4 AVC/H.264 |
Moka-tere |
1Mbps~13Mbps ia hongere |
Mana Reiti |
CBR/VBR |
Hanganga GOP |
IP…P (P Whakatikatika anga, karekau he B Frame ) |
Ororongo |
Whakawaehere |
MPEG-1 Apa 2, LC-AAC, HE-AAC me AC3 Haere ma |
Reeti tauira |
48KHz |
Whakatau |
24-bit |
Pupuri Ororongo |
0-255 Ka taea te whakarite |
MPEG-1 Apa 2 Moka-tere |
48/56/64/80/96/112/128/160/192/224/256/320/384 kbps |
LC-AAC Bit-rate |
48/56/64/80/96/112/128/160/192/224/256/320/384 kbps |
HE-AAC Bit-rate |
48/56/64/80/96/112/128 kbps |
Wāhanga Tuner |
DVB-S |
Auautanga Whakauru |
950-2150MHz |
Reiti Tohu |
0.5~45 Ms |
Kahui whetū |
QPSK |
FEC |
1/2, 2/3,3/4,5/6,7/8 |
DVB-S2 |
Auautanga Whakauru |
950-2150MHz |
Reiti Tohu |
QPSK/8PSK/16APSK:0.5~45 Msps 32APSK:0.5~40 Ms |
Kahui whetū |
QPSK/8PSK/16APSK/32APSK |
FEC |
QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9,9/10 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 32APSK: 3/4, 4/5, 5/6, 8/9 |
Te reiti moka whakauru mo ia tuner |
≤170 Mbps |
DVB-S2X |
Reiti Tohu |
QPSK/8PSK/16APSK: 0.5~45 Msps; 8APSK/32APSK: 0.5~40 Msps |
Kahui whetū |
QPSK/8PSK/16APSK/8APSK/32APSK |
FEC |
QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/20 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10, 23/36, 25/36, 13/18 8APSK: 5/9-L, 26/45-L 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10,1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36, 2/3/3, 2/3/3, 2/3/3 77/90 32APSK: 3/4, 4/5, 5/6, 8/9, 2/3-L, 32/45, 11/15, 7/9 |
Te reiti moka whakauru mo ia tuner |
≤170 Mbps |
Te Kaha Waitohu |
-65~-25dBm |
Whakamaha |
PID mōrahi Mahanga Anō |
256 whakauru mo ia hongere |
Mahi |
Mahere PID (aunoa, a-ringa ranei) |
Te whakatikatika PCR tika |
Hangaia te tepu PSI/SI aunoa |
Whakawaenga |
DVB-C |
QAM Channel |
32/36/40/44/48 kaikawe kaikawe kore-tata ki te whakaputa (morahi bandwidth 192MHz) |
Paerewa |
EN300 429/ITU-T J.83A/B |
MER |
≥40db |
auau RF |
50~960MHz, 1KHz taahiraa |
taumata putanga RF |
-20~+3dbm, 0.1db taahiraa |
Reiti Tohu |
5.0Msps~7.0Msps, 1ksps te hikoi |
|
J.83A |
J.83B |
Kahui whetū |
16/32/64/128/256QAM |
64/256 QAM |
Aratuku |
8M |
6M |
DVB-T |
Paerewa |
EN300744 |
aratau FFT |
2K,4K, 8K |
Aratuku |
6M, 7M, 8M |
Kahui whetū |
QPSK, 16QAM, 64QAM |
Wā Kaitiaki |
1/4, 1/8, 1/16, 1/32 |
FEC |
1/2, 2/3, 3/4, 5/6, 7/8 |
MER |
≥42 dB |
auau RF |
50~960MHz, 1KHz taahiraa |
RF ki waho |
8/16/20/24/28 kaikawe kaikawe tata-kore te putanga (nuinga morahi 192MHz) |
taumata putanga RF |
-28~ -3dBm, 0.1db taahiraa |
ATSC |
Paerewa |
ATSC A/53 |
Aratuku |
6M |
Kahui whetū |
8VSB |
FEC |
RS(208 188)+Tari |
MER |
≥40dB |
ACL |
-55 dBc |
auau RF |
50~960MHz, 1KHz taahiraa |
RF ki waho |
32/36/40/44/48 kaikawe kaikawe kore-tata ki te whakaputa (morahi bandwidth 192MHz) |
taumata putanga RF |
-20~+3dbm(mo nga kaikawe katoa), 0.5db te hikoi |
ISDB-T |
Paerewa |
ARIB STD-B31 |
Aratuku |
6M |
Kahui whetū |
QPSK, 16QAM, 64QAM |
Wā Kaitiaki |
1/32, 1/16, 1/8, 1/4 |
Aratau Whakawhiti |
2K, 4K, 8K |
Waehere reeti |
1/2, 2/3, 3/4, 5/6, 7/8 |
MER |
≥40dB |
auau RF |
50~960MHz, 1KHz taahiraa |
RF ki waho |
8/16/20/24 putanga kore-patata kaikawe (nuinga morahi 192MHz) |
taumata putanga RF |
-20dBm~+3dBm, 0.1dB te hikoi |
Putanga awa |
1 Putanga ASI hei whakaata mo tetahi o nga kaikawe whakaputa RF (Kōwhiringa) Ko te putanga MPTS i runga i te UDP me te RTP/RTSP hei whakaata mo nga kaikawe whakawhiti 64 SPTS putanga (e wātea ana mo nga tauira o 48ch DVB-C, 28ch DVB-T, 48ch ATSC me 24ch ISDB-T), 1*1000M Base-T atanga Ethernet, tauranga GE |
Mahi pūnaha |
Whakahaere: NMS i runga i te paetukutuku, kotahi te tauranga NMS e whakahaere ana i nga waahanga whakauru katoa, te LCD+Keyboard whakahaere |
Te reo Hainamana me te reo Ingarihi |
Whakahou rorohiko Ethernet |
Te tini |
Ahu(W×L×H) |
482mm×328mm×44mm |
Taiao |
0~45℃(mahi)；-20~80℃（Rokiroki） |
Nga whakaritenga mana |
AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz |
