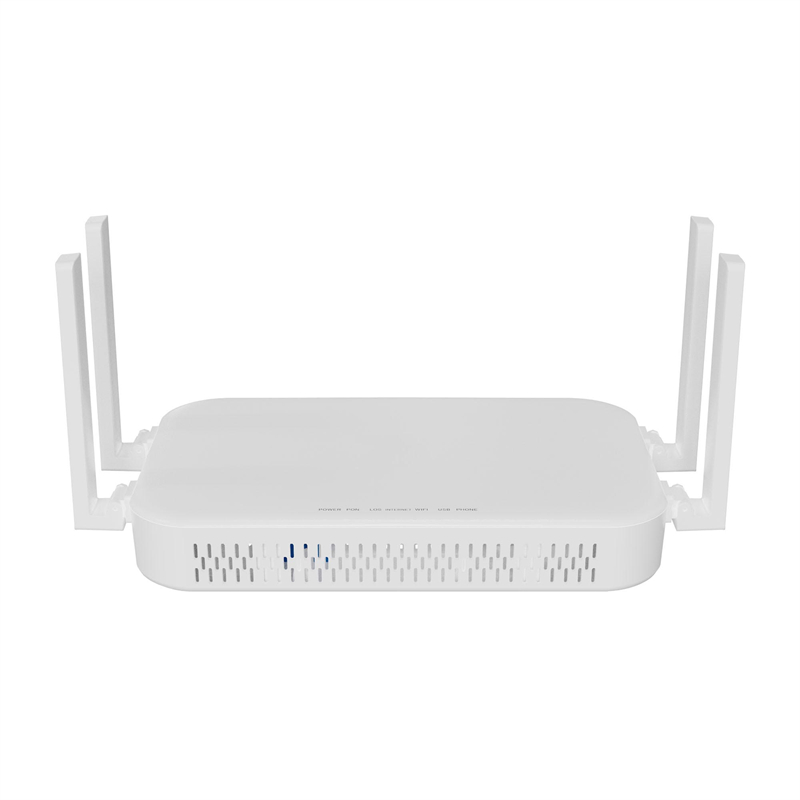

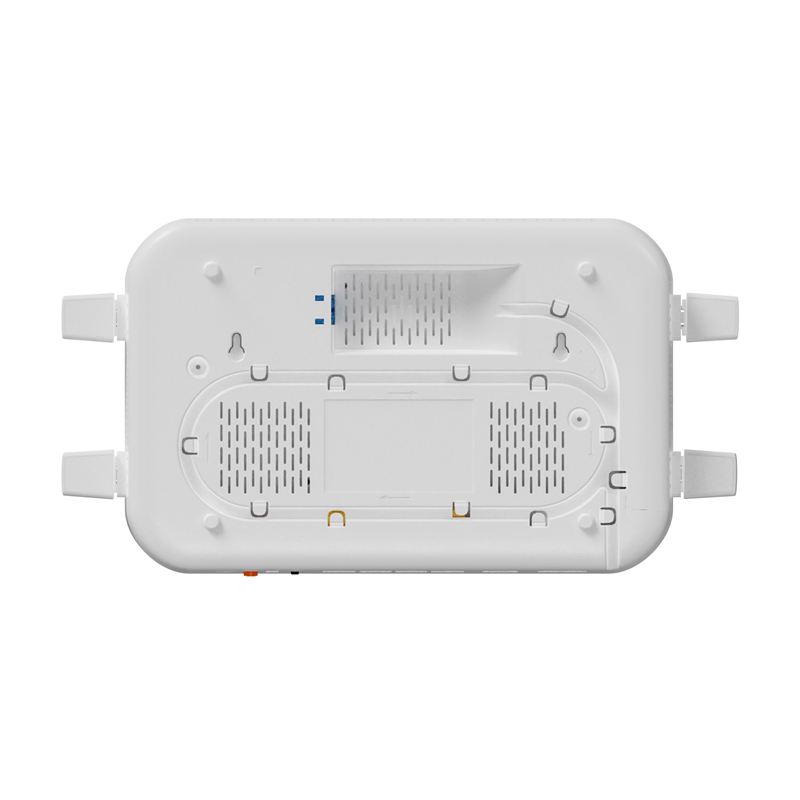

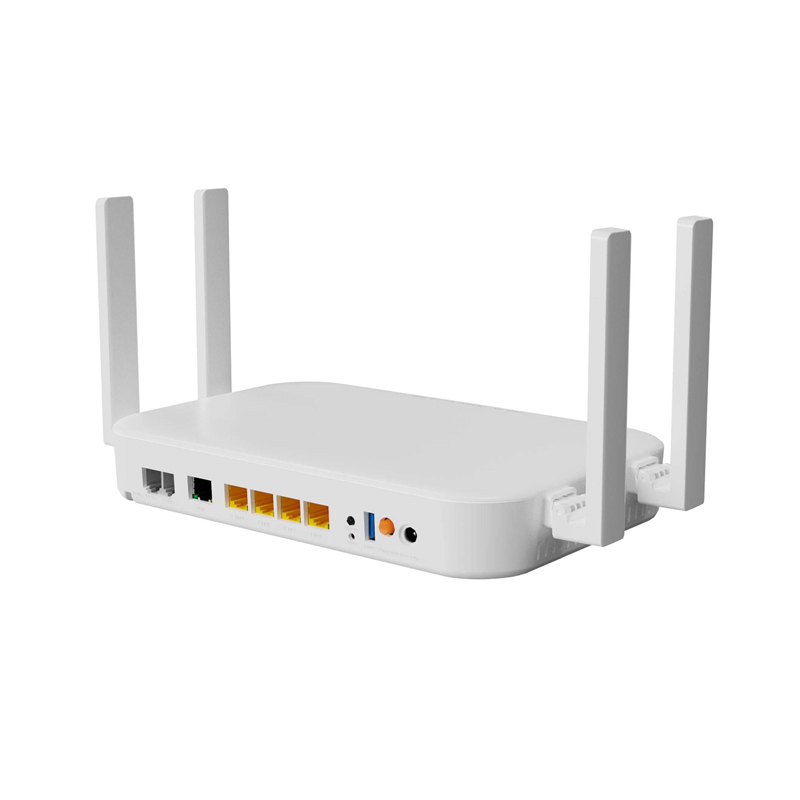

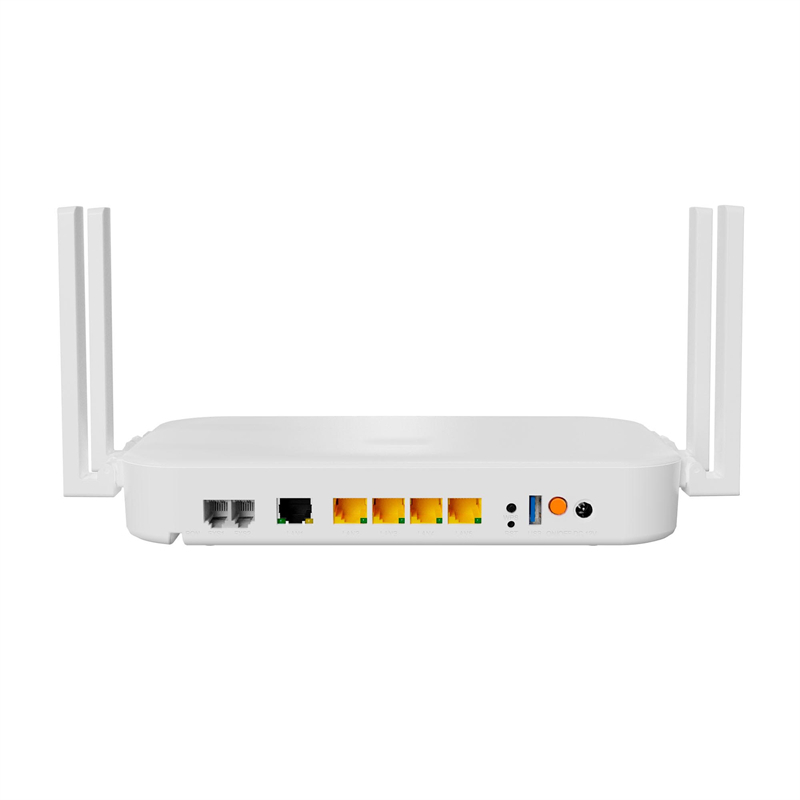

The ZY-XG-305AX-X26 is a high-performance Home Gateway Unit (HGU) Optical Network Terminal (ONT), integrating 1*10GE port, 1*2.5GE port, 3GE ports, 2POTS ports, 1*USB 3.0 port, and WiFi 6 capability. It leverages the latest WiFi 6 (AX3000) technology and is compliant with ITU-T G.9807.1 (XGS-PON) and IEEE 802.11ax standards, enabling ultra-fast internet access that surpasses the 2.5Gbps limitation of traditional GPON networks.

This device supports comprehensive triple-play services—data, video, and voice—via its Ethernet, Wi-Fi, and POTS interfaces. The versatile port configuration ensures high-speed wired connectivity for multiple devices. Featuring advanced MU-MIMO and OFDMA technologies, it delivers efficient dual-band Wi-Fi coverage across 2.4GHz and 5GHz frequencies, optimized for bandwidth-intensive applications such as HD video streaming, large file transfers, and online gaming. Additionally, it provides reliable, high-quality VoIP services through its dedicated POTS ports.

XGPON ONUs (Optical Network Units) 10G PON DUAL BAND ZY-XG-305AX-X26 XGPON ONU ONT play a crucial role in the advancement of fiber access networks. Compliant with ITU-T G.987 (XGPON) and G.9807 (XGS-PON) standards, these devices offer symmetrical speeds of up to 10 Gbps, providing residential and business users with the necessary bandwidth for high-quality video streaming, cloud services, and extensive IoT applications. Their primary function is to efficiently terminate the optical line, converting signals for end-user devices while ensuring quality of service, security, and network reliability.

Our XGPON ONUs are fully compatible with our ZHIYI XGPON OLT, making them the ideal choice for your optical communication network.

ITEM	ZY-XG-305AX-X26
ITEM	ZY-XG-305AX-X26
PON interface	●10G PON port: Class B+ ●SC single mode, SC/UPC connector ●TX optical power: 6dBm (XGS-PON), 5dBm (XG-PON) ●RX sensitivity: -28dBm ●Overload optical power: -8dBm ●Transmission distance: 20km ●Wavelength: XG(S)-PON:DS 1577nm/US 1270nm
User interface	● 110GE, Auto-negotiation,RJ45 port ● 12.5GE, Auto-negotiation,RJ45 port ● 3GE, Auto-negotiation,RJ45 ports ●2POTS, RJ11 Connector ● 1*USB3.0
O&M	● WEB/TELNET/OAM/OMCI/TR069 ● Support private OAM/OMCI protocol
Internet connection	Support Bridge/Router mode
VoIP	● SIP and IMS SIP ● G.711a/G.711u/G.722/G.729 Codec ● Echo cancellation,VAD/CNG,DTMF Relay ● T.30/T.38 FAX ● Caller Identification/Call Waiting/Call ● Forwarding/Call Transfer/Call Hold/3-way Conference ● Line testing according to GR-909
WIFI	●Wi-Fi 6: 802.11a/n/ac/ax 5GHz & 802.11g/b/n/ax 2.4GHz ●Wi-Fi Encryption: WEP-64/WEP-128/ WPA/WPA2/WPA3 ●Support OFDMA, MU-MIMO, Dynamic QoS, 1024-QAM ●Smart Connect for one Wi-Fi name – One SSID for 2.4GHz and 5GHz dual band
L2	802.1D&802.1ad bridge, 802.1p Cos,802.1Q VLAN
L3	IPv4/IPv6, DHCP Client/Server,PPPoE, NAT, DMZ, DDNS
Firewall	Anti-DDOS, Filtering Based on ACL/MAC /URL
Dimension	295mm156mm41.3mm(L×W×H)
Net weight	0.425Kg
Operating condition	● Operating temp: -10 ~ +55°C ● Operating humidity:5 ~ 95% (non-condensed)
Storing condition	● Storing temp: -40 ~ +70°C ● Storing humidity: 5 ~ 95% (non-condensed)
Power adapter	DC 12V, 3A, external AC-DC power adaptor
Power supply	≤36W
Interface	12.5GE+3GE+1*USB 3.0+Wi-Fi 6 AX3000
Indicators	POWER、PON、LOS、INTERNET、WIFI、 USB、PHONE

Product Name

Product Description

Accessories

ZY-XG-305AX-X26

1*10GE+1*2.5GE+3*GE+2*POTS+USB3.0+WiFi 6(AX3000)

AC-DC power adaptor: DC12V/3A

Color : white optional

1. What is the delivery time for ZY-XG-305AX-X26 XGPON ONU ONT?

The delivery time may vary depending on the quantity and specific requirements. The standard delivery time is 15-20 working days. Please reach out to our sales team for more information regarding the estimated delivery time.

2. Can the XGPON ONU ZY-XG-305AX-X26 XGPON ONT be customized to meet specific needs?

Yes, we offer customization options for the XGPON ONU based on specific requirements such as logo, interface configuration, default settings, and connector type. Please contact our sales team to discuss your customization needs.

3. What type of technical support is provided for the XGPON XGSPON ONU?

We provide comprehensive technical support for the XGPON ONU, including product documentation, troubleshooting guides, and remote assistance. Our technical team is available to assist you with any inquiries or issues you may encounter.

4. What shipping methods are available for theZY-XG-305AX-X26 XGPON ONU ONT?

We offer various shipping methods for the including air freight, sea freight, and express delivery. You can choose the shipping method based on your preference and urgency. Please contact our sales team for more details on shipping options.

10G PON DUAL BAND ZY-XG-305AX-X26 XGPON ONU ONT
