The ZY 2500C, we supply 48 or64 IP to Analog Modulator, a high-density 2U chassis product designed for easy operation and versatile functionality. This product supports OSD insertion for each channel, allowing for seamless logo and caption integration. It also supports CC/Subtitle/Teletext, program info modification, and multiple audio selection.

With 2 GE ports and a maximum of 64 IP inputs over MPTS/SPTS, the ZY 2500C can handle up to 840Mbps for each GE input. It supports HEVC/H.265, H.264/AVC, and MPEG-2 TS decoding, making it compatible with a wide range of formats.

This product is capable of processing up to 48or64 IP multicast groups of a Gigabit Ethernet MPEG TS into up to 48 or64 standard PAL or NTSC or SECAM TV programs. It can output 32 non-adjacent or adjacent carriers within 400MHz and supports web-based network management for easy monitoring and control.

The ZY 2500C is the ideal solution for broadcasters and content providers looking for a reliable and efficient product for their broadcasting needs.

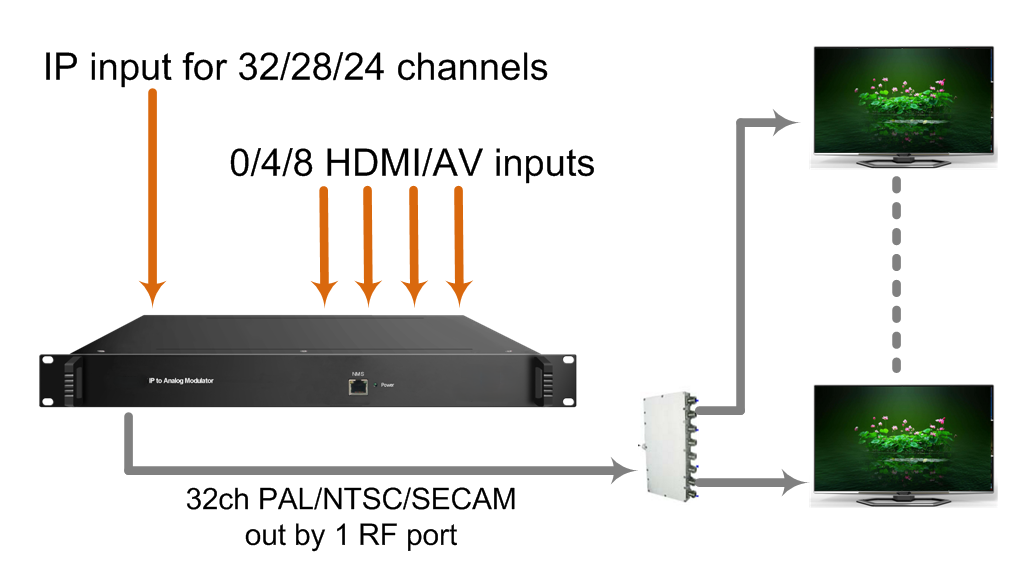

48in1 or 64 in 1 IP to Analog Modulator for System Construction Illustration：

Model		ZY-2500C 48 or 64 in 1 IP to Analog Modulator
Input	Interface/rate	48/64 IP (or 4 HDMI/AV+28 IP, or 8 HDMI/AV+24 IP) input 2 /4 GE ports (max 64 IP input) Max 840Mbps for each GE input
	Stream	UDP, UDP / RTP, 1-7 packets (SPTS/MPTS)
	Transport Protocol	UDP/RTP, unicast and multicast, IGMP V2/V3
	Packet Length	188 / 204 Bytes
Decoding Parameters	Video format	HEVC/H.265, H.264/AVC, MPEG-2
	Audio format	MPEG-1/2 Layer 1/2, (HE-)AAC, AC3
	Audio channels	Mono L, Mono R, Mono L+R A2 Dual Mono (L, R), A2 Stereo NICAM Dual Mono (L, R), NICAM Stereo (Note: when applying dual audio, one TV program with dual audio will occupy 2 frequencies, which means the total output channels will reduce respectively.)
	Data	CC, Teletext, Subtitles, DVB Subtitling
	Resolutions	HEVC/H.265: 1080@60P, 1080@60I, 1080@50P, 1080@50I, 720@60P, 720@50P H.264/AVC: 1080@60I, 1080@50P, 1080@50I, 1080@30P, 1080@25P, 720@60P, 720@50P, 576@50I, 480@60I MPEG2: 1080@60I, 1080@50I, 720@60P, 720@50P, 576@50I, 480@60I
	Aspect ratio	4:3
Modulation Parameters	Number of channels	48/64 non-adjacent or adjacent carriers output
	Connectors	75Ω, F-jack
	Frequency range	43.25 – 951.252MHz
	Output Bandwidth	400MHz
	Output level	-5 ~ 2dBm (102 ~ 109dBμV)
	Return loss	≥ 14dB
	Spurious frequency dist.	≥ 60dB
	Residual carrier accuracy	1%
	TV standard	PAL B/G/D/K/M/N/I, NTSC M, SECAM
	Video-signal to noise ratio	≥ 60dB
	Carrier to noise ratio	≥ 60dB (when single carrier on) ≥ 55.5dB (when all 32 carriers on)
Network Interface	Management	1 x 100 Base-T Ethernet (RJ 45)
Network Interface	Data	2 x 1000 Base-T Ethernet (RJ 45)
Others	Image resolution output	480i/576i
	OSD	Logo : JPG, BMP, PNG
	OSD	Caption : support multiple languages, scrolling direction and speed customized
	Output volume adjustment	0 - 100 %
General	Demission	483mm×330mm×88mm (2U)
	Temperature	0~45℃(operation), -20~80℃(storage)
	Power Supply	AC100V±10%, AC 220V±10%, 50/60Hz Redundancy power supply (Optional)

Options	ZY 2500C Configuration
Option 1	16 or 32 IP input, 16 or 32 analog channel outputs
Option 2	4 HDMI+28 IP input, 32 analog channel outputs
Option 3	8 HDMI+24 IP input, 32 analog channel outputs
Option 4	4 AV+28 IP input, 32 analog channel outputs
Option 5	8 AV+24 IP input, 32 analog channel outputs
Option 6	48 or 64IP input, 48 or 64 analog channel outputs

FAQs：

1. What is the delivery time for the ZY-2500C 48in1 or 64 in1 IP to Analog Modulator?

The delivery time for the ZY-2500C 16in1/32in1 IP to Analog Modulator is typically between 5-10 days.

2. What is the difference between the 48 or 64 in1 versions of the ZY-2500C IP to Analog Modulator?

The 16in1 version of the ZY-2500C can process up to 16 IP multicast groups, while the 32in1 version can process up to 32 IP multicast groups.

3. Can the ZY-2500C support both PAL and NTSC TV programs?

Yes, the ZY-2500C IP to Analog Modulator can support both PAL and NTSC TV programs.

4. Is the ZY-2500C compatible with HEVC/H.265 encoding?

Yes, the ZY-2500C supports HEVC/H.265 encoding, as well as H.264/AVC and MPEG-2 TS decoding.

5. Does the ZY-2500C come with a warranty?

Yes, the ZY-2500C IP to Analog Modulator comes with a standard warranty to ensure customer satisfaction and product reliability.
