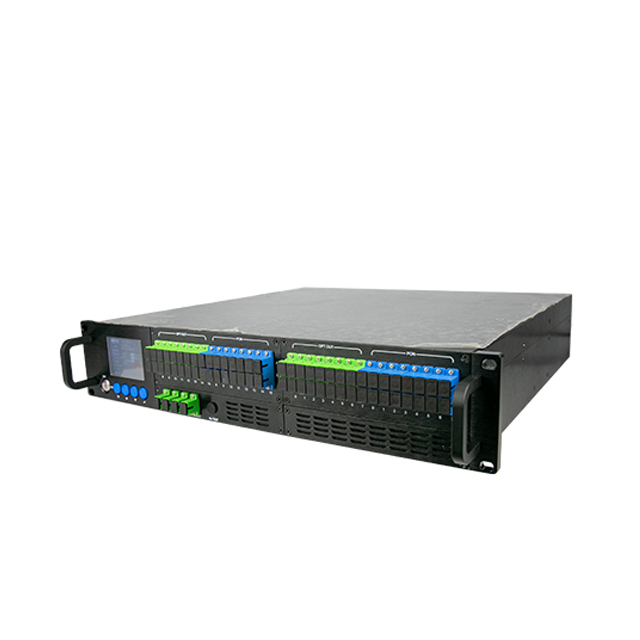

Standard optical amplification hits severe physical limits in next-generation transmission mediums. Extreme path loss constantly plagues free-space satellite links. Furthermore, unique coupling challenges severely hinder Hollow-Core Fiber (HCF) testbeds. You cannot rely on legacy telecom amplifiers for these advanced applications. A High Power EDFA emerges as the definitive solution here. It delivers the high-gain, low-noise amplification strictly required to close complex link budgets. These robust devices thrive in edge environments demanding extreme signal fidelity.
This article serves as a comprehensive technical evaluation guide. It targets optical engineers, researchers, and network architects directly. You will discover how to specify and shortlist these specialized optical amplifiers efficiently. We cover everything you need for advanced R&D and eventual commercial deployment. Careful component selection ensures long-term project success.
High Power EDFAs are critical for overcoming extreme attenuation in Low Earth Orbit (LEO) optical inter-satellite links (OISL) and deep-space communications.
In Hollow-Core Fiber testbeds, these amplifiers compensate for coupling inefficiencies while exploiting HCF’s low-latency and high-power-handling capabilities.
Evaluating a High Power EDFA requires balancing saturated output power and high gain with strict Noise Figure (NF) limits and SWaP (Size, Weight, and Power) constraints.
Successful deployment hinges on managing implementation risks, including thermal dissipation, pump laser redundancy, and environmental compliance.
Conventional optical amplifiers work well in standard terrestrial telecom networks. They fall noticeably short in specialized, high-demand architectures. Typical terrestrial amplifiers offer up to +23 dBm output. Next-generation systems demand much higher optical energy. Standard units suffer from thermal saturation quickly. They cannot maintain gain uniformity at higher drive currents. Amplified Spontaneous Emission (ASE) noise overwhelms the signal easily. Engineers face a strict performance ceiling. Upgrading becomes a physical necessity.
Space optical links face severe geometric spreading over vast distances. Atmospheric absorption further degrades signal strength during ground-to-space transmissions. Atmospheric turbulence scatters photons unpredictably. Engineers must use exceptionally high transmit power. You cannot overcome immense distance without aggressive, clean amplification. A weak signal simply disappears into the background noise floor. Receiver sensitivity limits dictate minimum power thresholds strictly.
Solid-core and hollow-core fibers have distinct physical differences. Mode-field diameter mismatches create massive insertion losses. Connecting traditional silica to an air-core structure introduces significant coupling loss. This loss occurs at every physical interface. You must pre-compensate using high-gain optical amplification. Otherwise, the signal degrades before it travels any meaningful distance. Standard splicing techniques fail to mitigate these boundary losses completely.
Upgrading is not just a simple volume bump. It remains a strict requirement for overall signal integrity. System viability depends entirely on adopting a high-performance amplifier. You must bridge the gap between theoretical optical physics and physical hardware realities. Standard telecom gear simply cannot survive these specialized demands.
Satellite-to-satellite networks span thousands of kilometers continuously. Signal reach depends heavily on saturated output power. High optical energy guarantees your data survives this journey. It drives optical inter-satellite links (OISL) securely. Reliable amplifiers prevent catastrophic data loss in transit. They form the backbone of Low Earth Orbit (LEO) constellations. Deep-space missions rely on this exact same principle.
Space payloads enforce stringent dimensional limitations constantly. Size, weight, and power (SWaP) metrics remain paramount. You must balance high power output against strict payload restrictions. Compact, highly efficient amplifier modules are absolutely essential. Orbital launch allows zero room for bloated hardware. Every additional gram impacts the mission feasibility. Electrical power consumption requires careful management aboard solar-powered satellites.
Space environments unleash harsh cosmic radiation daily. They also trigger extreme temperature cycling constantly. You need highly resilient space-grade components. Standard erbium-doped fiber darkens under heavy gamma radiation. Radiation-Induced Attenuation (RIA) ruins optical transmissivity entirely. You must evaluate amplifiers strictly for environmental resilience. Radiation-hardened fibers prevent this debilitating signal loss. Robust engineering prevents premature orbital failures.
Follow these essential steps for orbital payload evaluation:
Calculate precise thermal dissipation limits for vacuum environments.
Define strict electrical power draw boundaries for the amplifier.
Specify maximum allowable module weight in grams.
Verify component radiation test data against mission duration.
Confirm temperature cycling survivability metrics.
HCF eliminates the solid silica glass core entirely. Light travels through an air core instead. This architecture achieves near-light-speed transmission effortlessly. Group velocity increases by roughly thirty-three percent. You need to boost signals without adding prohibitive latency. A High Power EDFA becomes the preferred choice here. It provides immediate gain across the fiber link. This synergy minimizes delay in high-frequency trading networks.
High power levels typically trigger nonlinear penalties in solid silica. Stimulated Brillouin Scattering (SBS) ruins data integrity rapidly. Stimulated Raman Scattering (SRS) also degrades specific wavelengths. HCF inherently resists these harmful nonlinearities. The air core lacks the dense material density required for scattering. Pairing HCF and a robust amplifier changes the game entirely. Networks push significantly more watts safely. You bypass the traditional optical power constraints.
Research and development labs validate the next generation of telecommunications. They require a highly reliable foundational architecture. Amplifiers ensure signal fidelity over complex, experimental fiber runs. They empower experimental architectures to succeed. Without reliable amplification, testbed data remains inconclusive. Researchers need clean, powerful light sources. They use them to characterize new fiber geometries accurately.
Key advantages of pairing specialized fibers and robust amplifiers include:
Eliminating standard silica nonlinearities easily at multi-watt levels.
Pushing high-capacity optical signals safely over longer test runs.
Maintaining ultra-low latency profiles consistently across the network.
Overcoming severe interface coupling inefficiencies natively.

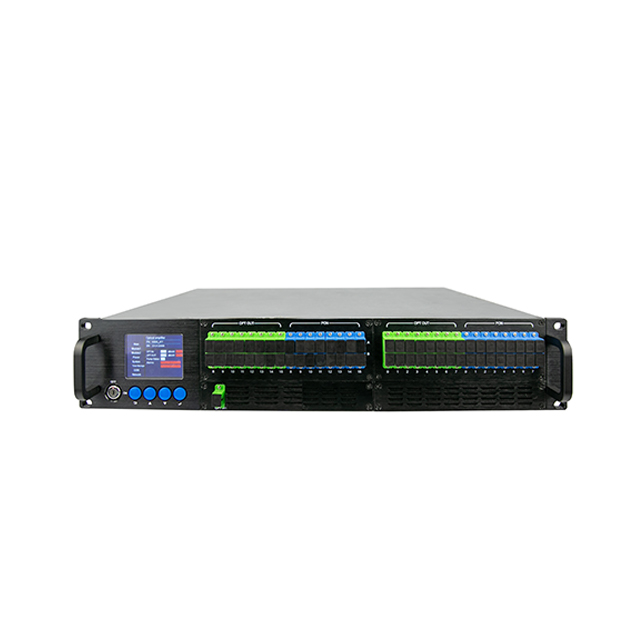

Distinct applications demand specific threshold targets. Some configurations only need +30 dBm output power. Others push toward +40 dBm and beyond. You must define these specific targets early. High gain requires careful thermal management. Double-clad erbium/ytterbium co-doped fibers usually handle these massive loads. Single-mode performance must remain stable at maximum saturation. Output instability ruins coherent transmission schemes.
Power without clarity remains utterly useless. Debilitating Optical Signal-to-Noise Ratio (OSNR) ruins networks. Set baseline acceptable Noise Figure (NF) metrics immediately. Keep the noise figure as low as physically possible. High noise floors destroy receiver sensitivity. Precision pre-amplifiers often precede the main booster stage. This dual-stage design keeps the overall NF manageable. You should demand precise OSNR degradation test results.
C-Band and L-Band require highly uniform amplification. Wavelength Division Multiplexing (WDM) compatibility relies heavily on this uniformity. Dense data environments cannot tolerate skewed gain profiles. Channel power balancing ensures optimal network health. Uneven gain starves specific wavelengths of necessary power. Dynamic gain flattening filters (GFF) correct these imbalances effectively. You must specify maximum allowable gain ripple.
Coherent space communication demands strict polarization extinction ratios. You should specify Polarization Maintaining (PM) architectures. They preserve signal integrity perfectly over long distances. PM fibers prevent unwanted mode coupling. Standard fibers allow polarization states to drift unpredictably. Coherent receivers drop drifting signals entirely. High-quality PM components guarantee a stable communication link.
Use the following specification table to align your architectural needs:
Specification Type | Standard Application | Typical Target Requirement |
|---|---|---|
Saturated Output Power | Deep Space OISL Links | +35 dBm to +40 dBm |
Noise Figure (NF) | High-Density WDM Systems | Less than 5.0 dB |
Gain Flatness | Wideband Communications | Less than 1.0 dB variance |
PM Extinction Ratio | Coherent Communication | Greater than 20 dB |
Pumping high power into fibers generates massive heat continuously. Vacuum environments complicate cooling requirements immensely. Convection cooling does not exist in space. Conductive cooling paths become your only option. Dense lab racks suffer similarly from trapped heat. You must outline strict heat dissipation strategies. Failure causes rapid thermal runaway. Proper heatsinking prevents catastrophic module failure. Thermal modeling saves missions from early termination.
Multi-pump architectures guarantee ongoing system reliability. Failure-mode planning ensures continuous operation under stress. Inaccessible environments forbid manual physical repairs. You cannot dispatch a technician to orbit. Redundancy acts as your ultimate safety net. A single pump diode failure should never break the link. Automatic power control loops compensate for failing diodes. They increase current to surviving pumps automatically.
Evaluate OEM capabilities thoroughly before purchasing. Look for proven, independent test data. Demand rigorous environmental certification like Telcordia GR-1312 or MIL-STD. Seek transparent manufacturing yield metrics. Custom form-factor engineering matters greatly. Avoid vendors lacking specific space-flight or high-power heritage. Request detailed MTBF (Mean Time Between Failures) calculations. Verify their optical component sourcing meticulously.
Below is a best practices chart for system integration:
Integration Phase | Common Mistake Identified | Recommended Best Practice |
|---|---|---|
Design phase | Ignoring thermal saturation limits | Mandate direct conductive cooling paths |
Sourcing phase | Skipping independent radiation tests | Request full MIL-STD testing documentation |
Testing phase | Ignoring HCF interface losses | Pre-calculate exact mode-field coupling drops |
Deployment phase | Relying on single pump diodes | Specify redundant multi-pump architectures |
Advanced optical amplifiers bridge a critical engineering gap. They connect theoretical optical physics to real-world deployment successfully. They enable Hollow-Core Fiber experiments and deep-space links efficiently. Without them, signals fade into ambient noise quickly. Superior amplification ensures data integrity across unimaginable distances.
Prioritize total vendor transparency regarding thermal management capabilities. Focus strictly on Noise Figure metrics at maximum saturation. Raw power claims alone mean very little. You need clean, manageable, and stable optical power.
Define your exact link budget today. Chart your strict SWaP requirements clearly. Request customized datasheets from your shortlisted optical engineering partners immediately. Proper planning ensures your next-generation optical network deploys flawlessly.
A: Standard units use single-mode pump lasers and basic erbium fibers. High-power versions use specialized double-clad erbium/ytterbium co-doped fibers. They incorporate higher capacity multimode pump lasers. They also feature sophisticated thermal management systems capable of handling multi-watt optical outputs safely without degrading.
A: FSO links suffer immense propagation losses over vast distances. Atmospheric absorption and geometric spreading weaken signals drastically. High-power amplifiers overcome this extreme attenuation. They ensure the distant receiver captures a viable signal without prohibitive noise interference.
A: Connecting solid-core amplifier outputs to HCF inputs creates a mode-field diameter mismatch. This physical mismatch causes significant insertion loss. Engineers require amplifiers with much higher raw output power to compensate. This extra power maintains the overall link budget effectively.
A: Space payloads demand a strict balance. You must achieve high optical output while minimizing electrical power consumption. Footprint and total weight remain highly restricted. Every gram and watt impacts launch feasibility. Efficient, compact amplifier designs are strictly mandatory for satellite integration.
