In today’s fast-paced digital world, the need for fast and reliable data transmission is crucial. Optical fiber cables have emerged as the backbone of modern communication, enabling high-speed data transfer over long distances.
In this article, we will explore how optical fiber cables work to transmit data efficiently, highlighting key components like the Optical Transmitter, their transmission mechanisms, and applications in various industries.

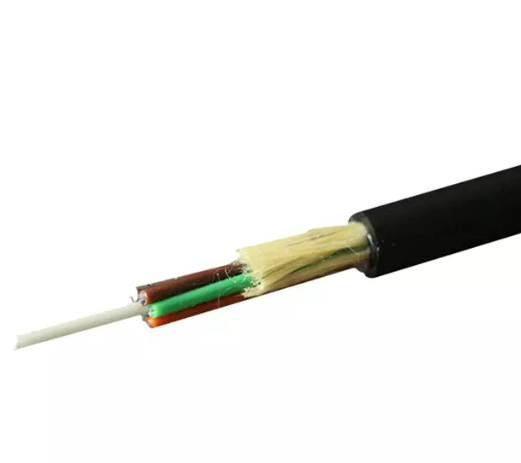

An optical fiber cable is a specialized type of cable designed to transmit data using light signals. It consists of a bundle of individual optical fibers made of glass or plastic. These fibers are capable of transmitting data over long distances with minimal loss of signal quality, a significant improvement over traditional copper cables.
The core of the optical fiber is where light signals travel. Surrounding the core is the cladding, which reflects the light back into the core to prevent signal loss. Finally, the protective coating surrounds the cladding, providing protection from physical damage.
Optical fiber cables can be made from either glass or plastic, each with its own benefits depending on the use case.
● Glass Fibers: These fibers are primarily used for long-distance communication because they offer low attenuation and high bandwidth, allowing data to travel great distances without significant signal degradation. Glass fibers are ideal for high-performance applications where minimal loss of data is essential.
● Plastic Fibers: Plastic fibers are more cost-effective and easier to handle than glass fibers. However, they have higher signal loss, making them suitable for shorter distances. Their flexibility and lower cost make them a popular choice for applications such as local area networks (LANs) and short-range communication systems.
Component | Description |
Core | The innermost part that carries light signals, made of glass or plastic. |
Cladding | Surrounds the core and reflects light back into the core using a lower refractive index. |
Protective Coating | Outer layer that protects the fiber from damage and external environmental factors. |
Optical fiber cables use light signals to transmit data. The process begins when an optical transmitter converts electrical signals into light signals. These light signals travel through the core of the fiber. The key feature that allows this transmission to occur efficiently is total internal reflection. This principle ensures that the light is confined to the core of the fiber, even as it bends or twists, by reflecting the light off the walls of the core.
The transmission of data through optical fiber involves several components working in harmony. The optical transmitter generates the light signal, while optical receivers decode the light signals back into electrical signals. Along the way, the light signals are modulated using techniques like wavelength division multiplexing (WDM), which allows multiple data streams to travel over the same fiber simultaneously.
In fiber optic communication, light pulses are used to represent data. Each pulse stands for a binary 1 or 0, enabling digital data transmission. These pulses travel through the fiber at speeds approaching the speed of light, making them ideal for high-speed data transfer. The timing of these pulses is critical to ensure accurate data transmission, and the pulses maintain their integrity over long distances thanks to total internal reflection.
Wavelength division multiplexing (WDM) is a technique used to increase the capacity of optical fiber systems by allowing multiple light pulses with different wavelengths to travel simultaneously over the same fiber. This method significantly enhances bandwidth efficiency and is a key factor in enabling faster data transmission over fiber optic networks.
Total internal reflection is the fundamental principle that governs the transmission of light through optical fibers. When light travels from the core to the cladding at an angle greater than the critical angle (determined by the refractive indices of the materials), the light is completely reflected back into the core instead of escaping into the cladding. This ensures that light signals travel long distances with minimal loss.
The difference in refractive indices between the core and cladding is critical in maintaining the integrity of the light signal. This mechanism allows optical fibers to support high-speed data transmission over significant distances, making them ideal for communication systems that span cities, countries, and even continents.
Single-mode fiber cables have a small core diameter, typically around 9 micrometers, allowing only one mode of light to travel through the fiber. This design minimizes modal dispersion, allowing light to travel long distances with minimal distortion. Single-mode fibers are ideal for long-distance communication, such as metropolitan area networks (MANs) or intercontinental fiber optic links. They are also used in applications that require high bandwidth and low attenuation over great distances.
Single-mode fibers often require a laser diode as the light source, which provides a focused, coherent beam of light ideal for long-distance transmission. These fibers support higher data rates and greater distances compared to multi-mode fibers.
Multi-mode fiber cables have a larger core diameter, typically around 50-62.5 micrometers, which allows multiple modes of light to propagate simultaneously. While this design is more affordable and easier to install than single-mode fibers, it is typically used for shorter distances due to modal dispersion, where different modes of light travel at different speeds, leading to signal distortion over long distances.
Multi-mode fibers are commonly used in local area networks (LANs), data centers, and other applications where short-distance communication is required. The light source for multi-mode fibers is typically an LED, which emits light at various angles, making it suitable for short-range data transmission.

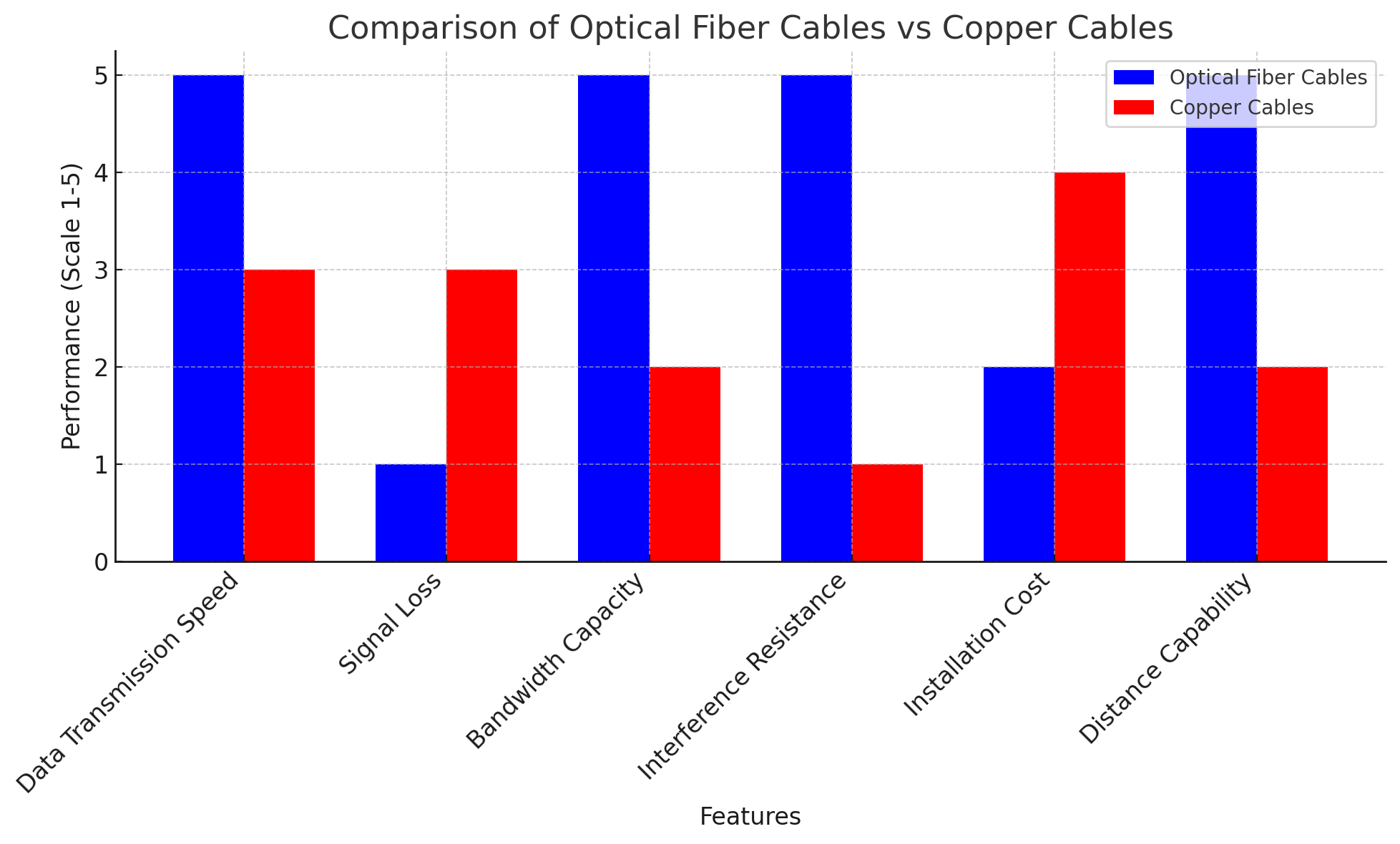

When comparing fiber optic cables to traditional copper cables, the differences in performance are striking. Fiber optic cables provide:
● Higher Bandwidth: Fiber optic cables offer significantly higher data transmission speeds than copper cables, making them ideal for modern communication networks.
● Longer Distance Coverage: Fiber optics can transmit data over much longer distances without signal degradation, while copper cables experience attenuation, requiring signal boosters for long-distance communication.
● Lower Signal Loss: The total internal reflection mechanism minimizes signal loss in fiber optics, making them more efficient for large-scale data transfer.
In terms of efficiency and capacity, fiber optics far outshine copper cables, which are limited by the electrical conductivity and susceptibility to interference.
One of the key advantages of fiber optic cables over copper cables is their immunity to electromagnetic interference (EMI). Since fiber optics use light instead of electrical signals, they are not affected by external electrical noise. This makes fiber optic systems ideal for environments with high electrical interference, such as factories, hospitals, or telecommunications hubs.
The immunity to EMI ensures that data transmitted over fiber optic cables is clean and reliable, providing a more stable communication link compared to copper cables, which can suffer from noise and signal degradation in such environments.
Feature | Optical Fiber Cables | Copper Cables |
Data Transmission Speed | High-speed, up to several terabits per second | Slower speeds, limited bandwidth |
Signal Loss | Low signal loss over long distances | High signal loss over longer distances |
Bandwidth Capacity | High, capable of supporting more data streams | Lower bandwidth capacity |
Interference Resistance | Immune to electromagnetic interference (EMI) | Prone to electromagnetic interference |
Installation Cost | Higher due to precision installation | Lower initial installation cost |
Distance Capability | Suitable for long-distance transmission | Limited range without signal boosters |
Optical fiber cables are essential components of modern data centers, where vast amounts of data need to be transmitted between servers, storage devices, and network switches. Their high bandwidth and low latency enable efficient data handling and quick access to information. Fiber optics are used at the core, aggregation, and access layers within data centers to ensure smooth data flow.
In networking, fiber optics play a key role in connecting entire cities or countries through metropolitan area networks (MANs) and wide-area networks (WANs), providing the high-speed connections required for internet traffic, cloud services, and enterprise applications.
Fiber optics are the backbone of modern telecommunications and internet services. From internet providers to mobile networks, fiber optic cables enable high-speed connections that support voice, video, and data communication. They provide the capacity needed for the growing demand for internet services, such as streaming, online gaming, and video conferencing.
The optical transmitter is essential in these systems, converting electrical data into light signals that travel through the fiber. Fiber optics enable faster internet speeds, higher quality communication, and more reliable connections compared to traditional copper-based systems.
In the medical field, optical fiber cables are used for high-resolution imaging and diagnostic procedures. Devices like endoscopes and surgical tools rely on fiber optics to provide clear images with minimal invasion, offering better precision and patient safety.
In military and aerospace applications, fiber optics are used for secure communication, surveillance systems, and navigation. The security of fiber optics ensures that sensitive data can be transmitted without risk of interception, making them ideal for these high-stakes environments.
Industry | Application |
Telecommunications | Powering internet, mobile networks, and voice services |
Data Centers | High-capacity data transmission and low-latency networking |
Medical | Medical imaging systems and precise data transmission |
Military | Secure communication systems for defense operations |
Automotive | Vehicle communication systems, reducing weight and increasing space efficiency |
Attenuation and signal loss are natural challenges in fiber optic communication. Factors such as absorption, scattering, and bending losses can degrade signal strength over long distances. These losses can be minimized by using optical amplifiers and repeaters, which boost the signal strength without the need for regeneration. Proper installation and high-quality fiber materials also help reduce signal loss.
Installing fiber optic cables can be challenging due to the delicate nature of the cables and the need for precise handling during splicing and connectorization. The cost of fiber optic deployment can also be significant, especially for long-distance connections and in urban areas with difficult terrain. Proper planning and investment in high-quality installation techniques can reduce long-term costs and ensure reliable performance.
Optical fiber cables are essential in modern communication systems, offering high-speed, long-distance data transmission with minimal loss. As the demand for reliable communication grows, fiber optics will remain crucial for powering the internet, data centers, and telecommunications. The future of data transmission relies on continued advancements in fiber optic technology. Companies like ZHIYI offer cutting-edge fiber optic solutions that enhance network performance and drive innovation across industries.
A: An optical fiber cable transmits data using light signals instead of electrical signals. It consists of a core, cladding, and protective coating, allowing for high-speed, long-distance transmission with minimal loss.
A: An optical transmitter converts electrical signals into light signals, which are then transmitted through the fiber optic cable. It plays a key role in ensuring data is sent efficiently and at high speeds.
A: Optical fiber cables offer higher bandwidth, faster data transmission speeds, and immunity to electromagnetic interference (EMI), making them more efficient and reliable compared to traditional copper cables.
A: Optical transmitters are essential for converting electrical signals into optical signals, enabling data to travel through the fiber with minimal signal loss, supporting efficient communication systems.
A: Optical fiber cables are used in telecommunications, data centers, medical devices, and military systems, where high-speed and reliable data transmission is crucial.
A: Optical fiber cables outperform copper cables by offering higher speeds, greater bandwidth, and lower signal loss over long distances, making them ideal for modern communication networks.
