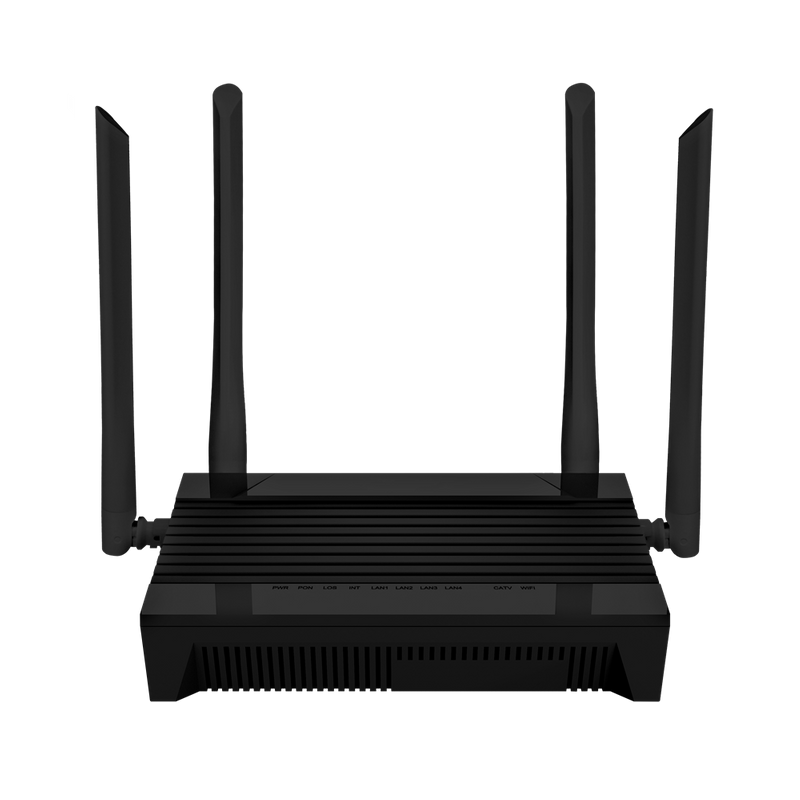

The ZY-704GS-AX15-C25 supply Black or White shell, WiFi 6 xPON gateway integrating CATV ONU/ONT functionality, designed to deliver seamless Internet, it is designed High speed Wi-Fi AX1500 or AX3000, Operating across 2.4GHz and 5GHz dual bands,it supports 802.11a/b/g/n/ac/ax wireless standards, achieving ultra-fast speeds of up to 1500/3000Mbps.The CATV via advanced XPON (GPON/EPON) technology, Can be remotely controled in your OLT . This all-in-one solution ensures high-speed connectivity, multimedia streaming, and reliable signal transmission for residential and commercial applications.

Our WiFi 6 CATV ONU ZY-704GS-AX15-C25 Black will be the ideal wireless access product for your CATV and Internet,FTTH, FTTB, and FTTO deployments.

The WiFi 6 ONU AX1500/AX3000 High Speed ZY-704GS-AX15-C25 with RF Output will serve as the perfect wireless access & CATV solution for your Fiber to the Home (FTTH), Fiber to the Building (FTTB), and Fiber to the Office (FTTO) deployments.

catv apllitcation

Mechanics ZY-704GS-AX15-C25 BLACK
Dimensions		*210mm135mm45mm*
Weight		About 300g
Shell color		Black or white optional
Hardware
User Port (LAN)		RJ-45 connector
		4* 10/100/1000Mbps adaptive Ethernet port
		Full/half duplex
		Auto MDI/MDI-X
Indicators		PWR / PON / LOS / LAN1-4 / INT / WIFI
PON Port	PON Mode	EPON：1000BASE-PX20+ symmetric GPON：FSAN G.984.2 standard,Class B+
	PON Rate	EPON：1.25Gbps downstream/upstream GPON：2.488Gbps/1.244Gbps downstream/upstream
	Wavelength	Transmit: 1310nm	Receiver: 1490nm
	Receiving sensitivity	EPON：-27dBm GPON：-28dBm
	Saturated power	EPON：-3dBm GPON：-8dBm
	Transmitting power	EPON:0～4dBm GPON：0.5～5dBm

WIFI
IEEE802.11b/g/n/ax(2.4G) / IEEE802.11a/n/ac/ax(5G)
2.4G: 40Mhz bandwidth maximum rate 300Mbps 5G：80Mhz bandwidth maximum rate 1201Mbps Total wireless rate is 1500Mbps
2.4G EIRP:24dBm / 5 G EIRP:22dBm

Environment
Working temperature		0 to 40ºC
Operating humidity		10% ~ 90% (Non-condensing)

Power
External 12VDC/1A power supply adapter
Power consumption		<11W

CATV（Input /Output port）
Wavelength: 1550nm
Input optical power: -18dBm～0dBm(with AGC)
RF frequency: 47MHz~1000MHz
RF output level: 78dBuV (@-12~-2dBm@85MHz) (with AGC)
RF output return loss: >12dB(with AGC)
RF impedance: 75Ω

Product Name

Product Description

Accessories

ZY- 704GS-AX15-C25

Black or white

4GE+CATV +Wifi 6 (2.4G/5.0Ghz）

AC-DC power adaptor: DC12V/1.0A

Q: What is the model of your WiFi 6 CATV ONU?

A: Our WiFi 6 ONU supply ZY-704GS-AX15-C25 Black or White shell, and diffference Wifi 6 speed of AX1500 or AX1800 or AX3000.

Q: What standards does the ZY-704GS-AX15-C25 support?

A: The ZY-704GS-AX15-C25 supports 802.11a/b/g/n/ac/ax standards, support CATV remotely control .

Q: What is the maximum speed supported by theZY-704GS-AX15-C25 Black ?

A: TheZY-704GS-AX15-C25 Black can achieve total high speeds 2.4 &5.0Ghz of up to AX1500 or AX1800 or AX3000.

Q: Is the ZY-704GS-AX15-C25 black compatible with third-party OLT systems?

A: Yes, our Wifi6 AX1500/AX3000 CATV ONU ZY-704GS-AX15-C25 black compatible Well with third-party OLT systems， as Huawei , ZTE, Fiberhome , Alcatel-Lucent.

if any technical questions with OLT, freely contact us ,we supply 24hours of technical support.

Q: What about the delivery time of ZY-704GS-AX15-C25 Black ?

A: as usual, lead time about 20-25workdays, If custom, freely contact your sales or 24hours hotline.

WiFi6 High Speed AX1500/AX3000 CATV ONU with 4GE Lan port ZY-704GS-AX15/AX30-C25 Black
