How To Integrate PON Networks With CATV Services

Views: 0     Author: Site Editor     Publish Time: 2026-06-15      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Upgrading legacy broadband networks demands careful strategy and precise execution. Multiple System Operators and ISPs face a massive hurdle today. They must migrate aging Hybrid Fiber-Coaxial architectures to modern Fiber to the Home. However, they cannot disrupt existing linear TV services. These legacy video subscriptions still generate substantial revenue for service providers. Dropping them abruptly risks heavy subscriber churn and financial instability.

An RF overlay architecture provides the perfect bridge. It smoothly integrates legacy video delivery into ultra-fast fiber networks. At the center of this transition sits a vital piece of hardware. A purpose-built CATV ONT determines your deployment success. It directly impacts network efficiency and overall subscriber experience. Selecting the wrong equipment causes signal degradation and expensive truck rolls.

In this guide, you will learn exactly how to execute this network convergence safely. We cover architectural physics, critical hardware evaluation criteria, and strict implementation rules. You will discover practical ways to protect revenue while modernizing your grid seamlessly.

Key Takeaways

  • Integrating CATV into PON requires an RF video overlay using the 1550nm wavelength, multiplexed alongside standard GPON/EPON data signals.

  • Deploying a purpose-built CATV ONT eliminates the need for parallel subscriber networks by splitting data and RF video at the customer premises.

  • Evaluating optical receivers, Automatic Gain Control (AGC) capabilities, and OMCI (ONT Management and Control Interface) compatibility is critical to avoiding post-deployment truck rolls.

  • Successful implementation requires strict adherence to optical link budgets and the exclusive use of APC (Angled Physical Contact) connectors to prevent signal degradation.

The Business Case: Why Integrate Legacy CATV Over PON?

Revenue Preservation

Operators must protect legacy linear TV revenue during infrastructure upgrades. QAM-based services remain highly profitable in many suburban and rural markets. Subscribers expect gigabit broadband speeds. However, they refuse to lose their familiar television channels. Upgrading internet tiers while maintaining reliable video keeps you highly competitive. You secure steady income while fighting off fiber-only upstarts. A seamless integration strategy prevents competitors from poaching your most loyal video subscribers. It ensures your cash flow remains stable during disruptive network modernization.

CapEx vs. OpEx Trade-offs

Running dual parallel networks drains engineering resources quickly. Maintaining legacy HFC nodes alongside new fiber lines requires massive capital expenditure. Consolidating services onto a single PON architecture drastically cuts operational expenses. You reduce expensive node splits completely. You eliminate constant coaxial amplifier maintenance across your outside plant. Streamlined infrastructure improves long-term financial health significantly. Operators save thousands of hours in field troubleshooting. A unified fiber strand carrying both data and video simplifies your entire operational footprint.

The Transition Timeline

Think of RF overlay as a strategic multi-year bridge. A complete IPTV migration forces huge headend investments immediately. You also face complex software licensing hurdles for new set-top boxes. Integrating video over fiber delays these massive upfront costs. Operators can instantly offer gigabit fiber broadband tiers to homes. Meanwhile, they gracefully transition video delivery backends over several years. This measured approach reduces technical debt. It gives engineering teams adequate time to test future IPTV solutions without rushing.

PON Networks with CATV Services Architecture

Architectural Solutions: How RF Overlay and CATV ONTs Work

The WDM Overlay Approach

The physics behind this solution rely on precise wavelength division multiplexing. Standard data signals travel over specific optical light wavelengths. GPON and EPON networks use 1490nm for downstream broadband traffic. They use 1310nm for upstream data communication. Legacy CATV video requires a completely different path. We inject video signals exclusively at the 1550nm wavelength. Headend technicians use an Erbium-Doped Fiber Amplifier. They then use a WDM combiner to multiplex these distinct signals onto one fiber strand. This prevents any data collision.

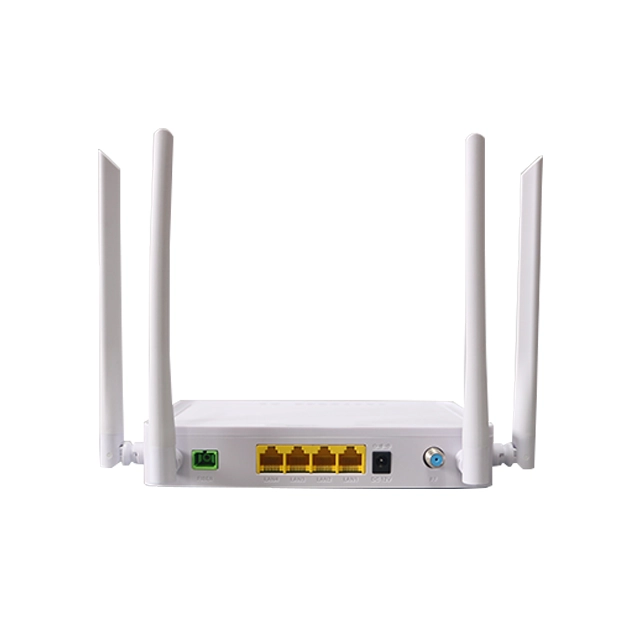

The Role of the CATV ONT

The customer edge requires highly specialized optical termination. A standard data terminal cannot process video wavelengths. A CATV ONT handles this complex separation process effortlessly. It houses a built-in optical triplexer filter. This internal component isolates the 1550nm video wavelength from internet data streams. The terminal converts optical pulses back into an RF electrical signal. Finally, it feeds this standard RF output directly into existing in-home coaxial wiring. Subscribers notice absolutely zero interruption to their daily television viewing.

Standards & Compliance

Hardware deployments must align with strict industry architectures. Equipment should comply fully with ITU-T G.984 GPON global standards. Adherence to SCTE and CableLabs RFoG concepts is equally vital. This strict compliance ensures seamless equipment interoperability across different vendors. It builds lasting architectural authority across your entire network footprint. Standardized framing prevents packet loss during high-demand viewing hours. It ensures your fiber overlay behaves predictably under heavy network stress.

Core Evaluation Criteria for Selecting a CATV ONT

Optical Receiver Sensitivity & AGC

Reliable video delivery demands stable RF output levels constantly. Optical receiver sensitivity acts as your primary hardware decision metric. A robust optical terminal must feature Automatic Gain Control. Optical input power often fluctuates across long fiber distribution runs. AGC normalizes these ambient variations instantly. It guarantees a steady RF output level. This output typically rests optimally around 18 dBmV. This stability directly minimizes screen pixelation. It reduces customer complaint calls dramatically. Terminals without AGC require constant manual padding by field technicians.

Interoperability and OMCI Support

Vendor lock-in cripples network agility and purchasing power. You must thoroughly evaluate OMCI integration capabilities before buying. The terminal management software needs seamless integration with third-party OLTs. Consider these essential OMCI capabilities for any hardware evaluation:

  • Remote RF port activation and deactivation from the central office.

  • Automated firmware upgrades pushing across multiple vendor OLTs.

  • Real-time optical power monitoring for proactive truck roll prevention.

  • Standardized alarm reporting for loss of signal events.

This ensures network engineers can remotely provision the RF port quickly. They manage video service tiers without dispatching a van.

RF Performance Metrics

Video clarity defines the ultimate user subscriber experience. Hardware buyers must scrutinize essential RF performance metrics closely. You must demand high metric tolerances from your vendor. These metrics guarantee flawless HD video quality. The resulting picture remains entirely indistinguishable from legacy HFC broadcasts.

Performance Metric

Definition

Target Impact on Network

Carrier-to-Noise Ratio (CNR)

Ratio of the RF carrier signal power to noise power.

Ensures a crisp image free of static or "snow" effects.

Composite Second Order (CSO)

Measures distortion from multiple carrier signals mixing.

Prevents diagonal lines and rolling interference patterns on screen.

Composite Triple Beat (CTB)

Distortion caused by third-order mixing of carriers.

Eliminates background ghosting and severe channel overlap issues.

Form Factor and Power Consumption

Residential environments impose strict physical hardware limitations constantly. Network planners must assess hardware footprint and thermal management aggressively. Terminals often reside in cramped media panels or unventilated utility closets. High heat generation degrades sensitive optical components over time. Low power consumption prevents early hardware failure. A compact form factor ensures smooth residential adoption. It keeps homeowners happy while maintaining rigorous enterprise-grade performance.

Implementation Realities and Deployment Risks

RF overlays face incredibly strict optical loss limits. The 1550nm wavelength suffers distinct attenuation challenges in outside plants. Integrating video introduces significant insertion loss at the WDM combiner. Engineers must execute precise optical amplifier planning. Choosing the correct optical splitting ratio is absolutely paramount. Standard 1:64 splits often fail under intense video overlay requirements. Many successful deployments must scale back to a 1:32 ratio. This ensures enough optical light reaches the final destination terminal.

The APC Connector Mandate

Analog RF video reacts extremely poorly to optical reflections. You must follow one absolute implementation rule rigorously. All fiber connections in the 1550nm path require specific green connectors. These angled connectors prevent internal signal bounce back.

Below is a chart summarizing the critical connector differences for network planners:

Connector Type

Color Code

Return Loss Profile

Suitability for RF Video

SC/APC (Angled Physical Contact)

Green

-65 dB (Excellent reflection handling)

Mandatory for all 1550nm video overlays.

SC/UPC (Ultra Physical Contact)

Blue

-50 dB (Poor reflection handling)

Strictly prohibited for analog RF video paths.

Never use standard UPC connectors for sensitive video overlays. Mixing them guarantees severe video ghosting. It causes massive signal degradation across the entire split node.

In-Home Coaxial Readiness

Customer premises wiring creates highly unpredictable variables. The optical terminal relies entirely on existing home coax networks. Upgraded outside fiber lines cannot fix poor internal residential wiring. Cheap or outdated splitters will block converted RF signals completely. Technicians must sweep test the internal coaxial run during every installation. Upgrading a bad residential splitter prevents immediate service failures. It stops repeat technician visits and boosts customer satisfaction instantly.

Shortlisting Logic and Pilot Testing Next Steps

Defining Success Criteria for a PoC

Never deploy untested optical hardware at a massive scale. Outline a realistic Proof of Concept framework first. You need to validate hardware performance in highly controlled environments. This eliminates surprises during neighborhood rollouts.

  1. Establish baseline optical power readings using your current OLT.

  2. Push the light levels artificially to minimum acceptable thresholds.

  3. Monitor the automatic gain control response on the terminal.

  4. Verify RF output stability using a digital signal meter.

  5. Test remote provisioning commands through your OMCI interface.

This rigorous process proves the terminal handles real-world fluctuations accurately.

Vendor Support & Lead Times

Excellent hardware means nothing without reliable logistics. Evaluate your vendor supply chain consistency thoroughly today. Request historical lead times for massive volume orders. Measure their technical support responsiveness strictly during the pilot phase. Quick engineering answers indicate a very strong long-term partnership. Slow responses predict future deployment delays.

Actionable Next Step

Move beyond theoretical planning immediately. Request a sample unit for rigorous lab testing today. Connect it alongside your current optical line terminal infrastructure. Verify OMCI interoperability deeply before committing to massive volume procurement. Real-world physical testing guarantees the smartest hardware investments. It ensures your fiber migration stays perfectly on schedule.

Conclusion

Integrating CATV with PON represents a highly proven method to protect video revenues safely. This standard-driven approach easily upgrades aging broadband infrastructure toward gigabit futures. You avoid disrupting loyal subscribers while modernizing the outside plant efficiently. The ultimate success of your RF overlay hinges entirely on precise optical link planning. It requires selecting a highly interoperable, AGC-equipped terminal for the customer edge.

Do not leave your network migration to chance. Contact a dedicated engineering specialist immediately to review your current optical link budget. Request detailed hardware specification sheets today. Secure a demo unit to test your distinct neighborhood deployment scenario directly.

FAQ

Q: Can a CATV ONT work with any brand of OLT?

A: Generally, yes, for the RF video portion. The 1550nm signal is entirely passive. It operates independent of the OLT data protocol. However, data provisioning requires exact compatibility. Remote management of the RF port demands standard OMCI interoperability between your specific OLT brand and the chosen terminal.

Q: Is an RF video overlay compatible with XGS-PON or 10G EPON?

A: Yes. XGS-PON uses 1577nm for downstream traffic and 1270nm for upstream. Since legacy CATV uses 1550nm, these wavelengths do not overlap. A proper coexistence element module easily multiplexes all these distinct wavelengths over a single fiber strand without causing signal interference.

Q: Do subscribers need new Set-Top Boxes (STBs) when switching to a CATV ONT?

A: No. This represents the primary commercial benefit of this integration. The terminal outputs standard RF signals over traditional coax wiring. Existing QAM-based STBs or direct-to-TV digital tuners function exactly as they did on the legacy HFC network. You avoid massive equipment replacement costs entirely.
