How to Terminate Fiber Optic Cable?

Fiber optic cable termination is the process of attaching a connector to the end of a fiber optic cable, which allows the fiber to be connected to networking equipment or other cables while minimizing signal loss and ensuring precise physical alignment.

Achieving a high quality termination is not merely about mechanical connection; it is about managing the microscopic physical interface where light transitions from a cable to a transmitter or receiver. Poor termination techniques lead to back reflection and signal attenuation, which can cripple high bandwidth applications. By mastering the correct methods, technicians ensure the reliability of their network deployment and reduce long term maintenance costs.

This article provides a deep dive into the technical requirements and industry best practices for professional fiber termination. For those looking to upgrade their infrastructure components, exploring high quality optical transmission solutions is an essential step in ensuring network stability. Furthermore, if you are looking to integrate these terminations into a broader system architecture, it is helpful to understand the underlying workflows found in our guide on connecting optical network terminals.

Table of Contents

From Principle to Practice: Fiber Optic Cable Termination

The core principle of fiber optic cable termination involves stripping the protective layers of an optical cable, preparing the glass fiber, and securing a connector to ensure that the fiber core is perfectly aligned with the mating device for optimal signal transmission.

Optical cable termination is a foundational task in network engineering. At its heart, the process is about overcoming the physical challenges of light propagation. Because the core of a single mode fiber is only about 9 microns in diameter, even the slightest misalignment can result in significant decibel loss. Professional technicians must prioritize cleanliness, as even a microscopic dust particle can bridge the gap between two connectors, causing signal scattering and back reflection.

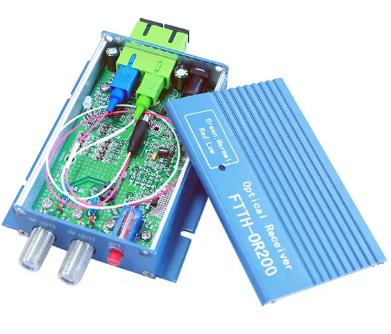

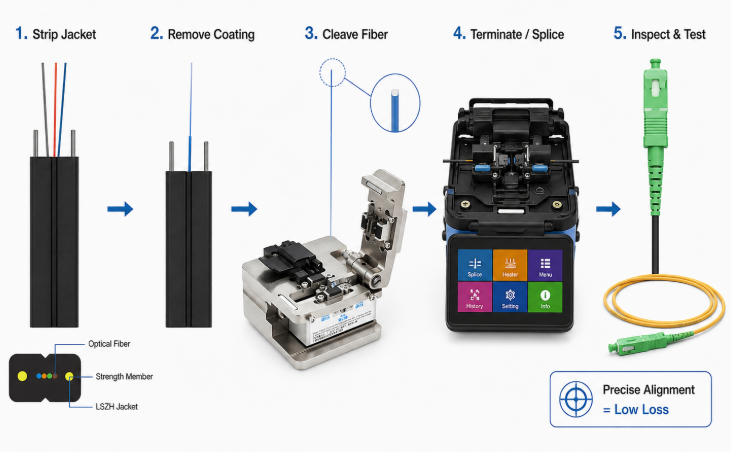

The transition from theory to practice requires a controlled environment. Before beginning the actual termination, one must ensure that all tools are calibrated and clean. The process generally involves removing the outer jacket, stripping the buffer coating, and exposing the bare cladding and core of the optical fiber. This delicate work demands patience, as the glass fiber is brittle and prone to fracture if handled with improper force.

When choosing hardware, one must ensure compatibility between the connector type and the transmission equipment. High performance optical transmission systems often require specific ferrule types, such as UPC or APC, to minimize return loss. Understanding these nuances is critical when planning a scalable network, especially when coordinating with various optical network terminal connection protocols to ensure seamless communication across the entire data pathway.

What Are We Terminating?

Terminating a fiber optic cable is the essential act of preparing the physical end of an optical transmission medium so that it can be securely joined to a matching interface without interrupting the path of light.

When we speak of optical cable termination, we are specifically addressing the termination of the light carrying core. An optical cable is not just a single wire; it is a complex assembly consisting of the core, the cladding that keeps the light contained, the primary coating for protection, and the strength members that prevent the cable from stretching. Termination involves carefully stripping away all layers except the cladding and the core to facilitate a physical interface.

The termination point serves as the gateway for data. Without a properly terminated end, the light escaping from the fiber would disperse into the atmosphere, leading to signal loss. By using a connector, the light is focused into a narrow beam that is directed into the receiving device's active component. This process is crucial because it allows networks to be modular, enabling technicians to move, add, and change connections as demand grows.

Furthermore, the quality of the termination determines the network's Return Loss (RL) and Insertion Loss (IL). A well finished end face—often polished to a specific geometry—ensures that the light signal passes through the interface with minimal reflection. If the termination is poor, light reflects back toward the source, causing "noise" that interferes with data transmission, effectively lowering the overall bandwidth capacity of the link.

Fiber Optic Termination Method Comparison & Summary

Fiber optic termination methods vary primarily between mechanical connectors and fusion splicing, each offering distinct advantages in terms of cost, speed, and durability for specific network deployments.

Technicians must choose the method that best fits the project requirements. Below is a comparison table outlining the most common methods used in the industry today:

Analyzing the Methods

Fusion splicing is widely considered the industry standard for high speed, long distance, and high bandwidth networks. This method involves using an electric arc to melt the fiber ends together, creating a seamless, permanent bond. The insertion loss of a fusion splice is typically less than 0.1 dB, making it the preferred choice for critical infrastructure where signal integrity cannot be compromised.

Mechanical connectors, while easier to deploy, involve inserting the fiber into a connector that holds the fiber in place with a mechanical clamp or an index matching gel. While this is faster and requires less specialized training, the interface is generally more prone to degradation over time compared to a fusion splice. It is a cost effective solution for short term or low frequency connection environments.

For many enterprise setups, a hybrid approach is used. Technicians may use pre-terminated pigtails and fuse them onto the main cable. This provides the performance of a factory polished connector with the durability of a fusion splice. Always ensure the chosen method aligns with the overall design specifications of your facility to maintain consistency across the network.

Best Practices & Pro Tips in Fiber Optic Termination

The secret to a successful optical cable termination is a combination of extreme cleanliness, precise cleaving, and rigorous testing to ensure the fiber interface meets all optical requirements.

To maintain high performance, follow these essential operational guidelines:

1. Cleanliness is Non-Negotiable: Use lint-free wipes and high purity isopropyl alcohol to clean the fiber face. Never touch the fiber core with your fingers, as the oils from your skin can cause permanent etching on the glass surface.

2. Master the Cleave: A perfect perpendicular cleave is required for low loss. If the end is angled or fractured, the light will not transmit correctly. Always use a high quality, sharp cleaving tool and maintain it regularly.

3. Use Proper Inspection Tools: Use a fiber inspection microscope to check every termination. Even if a connection seems to work, a small crack or piece of debris can lead to total link failure under high load.

4. Stress Relief: Always ensure the cable is properly secured with strain relief components. Fiber is incredibly strong under tension but weak when bent or pulled at sharp angles.

By following these procedures, you significantly reduce the risk of link failure. Regular inspection of your fiber interfaces is a simple but effective way to prevent downtime. It is also wise to keep a stock of high grade cleaning kits and replacement connectors, as these are the most common points of failure in any network. Always document your test results after every termination, as this data will be invaluable for future troubleshooting.

Conclusion

Successfully executing an optical cable termination is a hallmark of a professional network engineer. It requires not only the right tools and materials but also a disciplined approach to the physical handling of sensitive optical components. By prioritizing clean work environments, utilizing high quality connectors, and strictly following established splicing or mechanical techniques, you ensure that your network remains fast, reliable, and future proof. As you continue to build out your infrastructure, remember that the smallest point in the system—the connection point—is often the most important factor in total network performance.
