The Challenges Of Optical Network Units (ONU) Performance

Scaling modern FTTx networks frequently exposes hidden hardware bottlenecks directly at the customer premises. These invisible performance limits immediately impact subscriber retention and strict SLA compliance. Network operators face a difficult operational reality when expanding their fiber footprint. Delivering flawless Triple-Play services requires extremely stringent hardware performance across the board. Standard equipment often struggles under the massive load of complex RF overlays. Bandwidth contention quickly exposes critical weaknesses in baseline consumer devices. When these endpoints inevitably fail, network engineers must carefully evaluate specialized hardware. Our comprehensive guide helps you diagnose core endpoint performance challenges accurately. We define the critical measurement KPIs required for deep technical analysis. Finally, you will discover a strict evaluation framework for shortlisting high-performance CATV ONU solutions to future-proof your infrastructure.

Key Takeaways

• Standard ONUs often fail under the thermal and signal-processing demands of concurrent high-speed data and RF video streams.

• Diagnosing performance requires tracking specific KPIs: Bit Error Rate (BER), optical receiver sensitivity, and RF output stability.

• Deploying a specialized CATV ONU with Automatic Gain Control (AGC) prevents video signal degradation without compromising data throughput.

• Successful implementation requires vetting vendors for OMCI (ONU Management and Control Interface) interoperability and assessing 1550nm wavelength sensitivity during deployment.

Framing the Problem: Where Standard ONUs Bottleneck FTTx Networks

The Triple-Play Contention

Delivering voice, video, and data over a single fiber strand creates intense technical strain. The customer premises equipment must process gigabit data bursts continuously. It uses 1490nm wavelengths for downstream data and 1310nm for upstream communication. Simultaneously, the device must handle complex RF video signals riding on the separate 1550nm wavelength. This concurrent processing taxes the internal optical transceivers heavily. Standard devices lack the robust physical architecture required for this heavy lifting. They struggle to separate the high-speed internet packets from the analog television frequencies. This internal contention creates invisible bottlenecks. These bottlenecks degrade the overall user experience significantly.

Thermal Throttling & Component Fatigue

Processing multiple intensive signal streams generates substantial heat inside the compact chassis. Baseline endpoint models often feature very poor heat dissipation designs. They trap hot air around sensitive optical components. Excess heat degrades the optical transceiver's functional lifespan over time. The internal processor eventually triggers thermal throttling protocols. It artificially caps data throughput to prevent complete hardware failure. Users immediately experience sudden drops in their internet speeds. High-definition streams buffer constantly. Hardware failure rates climb steadily as component fatigue sets in across the network footprint.

Signal Degradation in RF Overlays

Fluctuating optical power levels directly ruin the subscriber experience. Poor signal isolation inside cheap endpoints causes severe video pixelation. Viewers frequently encounter frustrating macroblocking during live television broadcasts. Analog signals become fuzzy, while digital channels drop entirely. This severe degradation severely impacts overall customer satisfaction. Subscribers flood technical support lines complaining about unwatchable channels. Field technicians spend hours diagnosing invisible optical issues. You need robust endpoint hardware to prevent these widespread service disruptions. Reliable endpoints keep subscribers happy and prevent unnecessary field dispatches.

Critical KPIs for Diagnosing ONU Performance Issues

Optical Receiver Sensitivity & Overload

We must define strictly acceptable optical power ranges for reliable operation. Standard GPON networks typically require receiver sensitivity between -8 dBm and -27 dBm. Operating outside this precise window triggers immediate hardware problems. A weak signal dropping below the sensitivity threshold causes massive frame drops. The endpoint simply cannot translate the faint light pulses. Conversely, excessive optical power creates receiver overload. Overload entirely blinds the optical sensor. It distorts the incoming video and data signals beyond recognition. Engineers must track these optical boundaries carefully.

Bit Error Rate (BER) and Latency

You should frame these specific metrics as the ultimate baseline for data integrity. A high Bit Error Rate indicates severe physical layer problems. Packets arrive completely corrupted. The network protocol forces constant retransmissions to fix the errors. This invisible inefficiency spikes overall network latency dramatically. High latency destroys the clarity of voice-over-IP (VoIP) calls. Remote workers experience robotic audio and disconnected web conferences. Gamers notice this degradation instantly. You must keep BER below acceptable industry thresholds to guarantee flawless internet delivery.

RF Output Level and Carrier-to-Noise Ratio (CNR)

Video performance requires highly specific measurement metrics. Networks utilizing CATV overlays rely heavily on stable RF output levels. The Carrier-to-Noise Ratio (CNR) indicates the actual clarity of the television signal. A low CNR results in snowy pictures or digital artifacts. Tracking these values helps engineers pinpoint faulty passive splitters. It also highlights physically degraded drop cables.

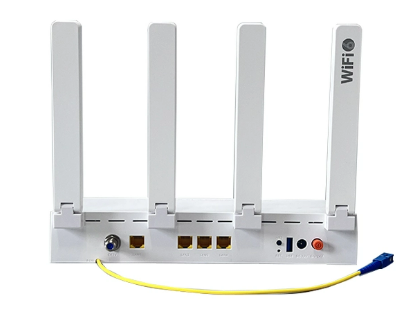

The Role of the CATV ONU in Resolving Signal Contention

Wavelength Isolation

A dedicated CATV ONU fundamentally solves multi-signal interference issues. It utilizes built-in Wavelength Division Multiplexing (WDM) technology. This internal WDM filter cleanly separates the 1550nm video signal from GPON or EPON data traffic. It physically directs the different light colors to distinct processing chips. Perfect optical isolation prevents any cross-talk between the competing services. Heavy internet downloads no longer interrupt the television feed. The internal hardware manages concurrent gigabit streams effortlessly.

Automatic Gain Control (AGC) as a Standard

Automatic Gain Control stands as a non-negotiable hardware feature. Optical power drops naturally over long physical fiber distances. Passive splitters introduce additional signal loss into the network path. AGC dynamically monitors this constantly fluctuating input power. It automatically adjusts internal RF amplifiers in real-time. The RF output level remains perfectly constant. Televisions receive a beautifully balanced signal regardless of the subscriber's location. You never have to worry about a home located too far from the central office.

Business Outcome

These crucial technical upgrades deliver massive operational benefits for service providers. Deploying high-quality endpoints transforms network management efficiency. We can map these specific features directly to tangible outcomes.

• Reduced Truck Rolls: Stable AGC hardware prevents signal fluctuations. Field technicians spend far less time troubleshooting unpredictable video issues.

• Lower Customer Churn: Flawless Triple-Play delivery keeps subscribers highly satisfied. Happy customers rarely switch to competing internet providers.

• Streamlined Support Tickets: Perfect wavelength isolation stops macroblocking entirely. Tier-1 support teams handle far fewer television pixelation complaints daily.

• Extended Equipment Lifespan: Premium thermal designs protect internal lasers. You replace far fewer units due to component burnout.

Evaluation Framework: Shortlisting the Right CATV ONU

Interoperability and Vendor Lock-in

Evaluators must demand documented proof of OMCI stack compatibility. The selected device must integrate seamlessly alongside third-party Optical Line Terminals (OLTs). Major brands like Huawei, ZTE, and Nokia dominate most global central offices. Choosing a closed ecosystem severely limits your future upgrade paths. Proprietary software prevents you from negotiating better hardware deals later. Open interoperability ensures long-term deployment flexibility. You must verify standard OMCI provisioning works flawlessly before making any vendor commitments.

Feature-to-Outcome Mapping

Selecting the right hardware requires matching specific technical capabilities to operational goals. A feature means nothing unless it solves a tangible network problem. Use the mapping chart below to guide your procurement strategy.

Compliance and Security

Verification of international industry standards remains absolutely critical. Verify strict adherence to ITU-T G.984 standards for GPON environments. You must also assess all firmware upgrade security protocols thoroughly. Secure boot processes prevent unauthorized access at the sensitive network edge. Strong encryption stops malicious actors from cloning MAC addresses. A compromised endpoint threatens the entire fiber branch. Demand detailed security compliance documents from every potential hardware vendor.

Implementation Realities and Deployment Risks

The 1550nm Bending Loss Reality

Field physics dictate very strict installation practices. The 1550nm wavelength carries the vital analog or digital CATV signal. This specific wavelength is significantly more sensitive to macro-bending in fiber drop cables. Standard data wavelengths (1310nm/1490nm) tolerate tighter bends without massive optical loss. The 1550nm light easily escapes the fiber core around sharp corners. You must require all field technicians to enforce strict bend-radius compliance. Sloppy cable stapling will destroy the television feed instantly while the internet continues working.

Power Budgets and Splitter Ratios

Engineers must recalculate entire optical power budgets before any new deployment. The internal WDM module introduces a minor, unavoidable insertion loss. This physical loss typically ranges around 1.0 dB to 1.5 dB. Failing to account for this drop can push edge users offline completely. You might need to adjust passive splitter ratios accordingly. Swapping a 1:64 splitter for a 1:32 splitter might become necessary on exceptionally long rural fiber runs.

Pilot Testing Best Practices

Never jump straight into bulk procurement based solely on datasheet promises. We highly recommend a localized, carefully controlled rollout first. A structured pilot test validates all vendor claims under real stress. Follow these sequential steps for a successful evaluation:

1. Select a challenging environment: Choose a high-noise or long-distance feeder route to test the optical limits.

2. Deploy a controlled batch: Install 50 to 100 units initially across the selected test zone.

3. Monitor AGC performance: Track the RF output stability over two full weeks of extreme temperature changes.

4. Validate OLT integration: Ensure your network operations center can provision and reboot the devices remotely.

5. Finalize bulk procurement: Review the generated performance data before signing any large volume contracts.

Conclusion

Overcoming severe endpoint performance challenges means matching hardware capabilities directly to strict network physics. Utilizing robust Automatic Gain Control and WDM technologies remains absolutely essential in Triple-Play environments. Standard consumer models simply cannot handle the thermal load or wavelength contention. Network planners must move far beyond basic datasheet specifications. Always demand exhaustive live-network interoperability testing to prove actual vendor claims. Request a detailed technical spec sheet today. Order a live testing sample of a highly-rated CATV ONU for your evaluation lab immediately. Consult directly with a qualified sales engineer to conduct an accurate power-budget analysis for your upcoming expansion.

FAQ

Q: What is the primary difference between a standard ONU and a CATV ONU?

A: Focus closely on the built-in WDM and RF receiver modules. A standard ONU strictly handles traditional data and voice traffic. Conversely, a CATV variant actively processes the dedicated 1550nm optical signal. It internally converts this light into standard coaxial RF for television services. This allows seamless Triple-Play delivery over one fiber strand.

Q: Why is Automatic Gain Control (AGC) critical for CATV ONU performance?

A: Optical power drops naturally over physical distance and through passive splitters. AGC dynamically adjusts the internal RF output power continuously. It ensures connected televisions receive a perfectly stable signal. This prevents frustrating video distortion, regardless of the subscriber's actual fiber distance from the central OLT.

Q: Can a new CATV ONU integrate with my existing OLT infrastructure?

A: Yes, but strict OMCI and OAM protocol compatibility remains vital. Most enterprise-grade units are designed for broad interoperability across major OLT brands. However, relying on datasheet claims is risky. Firmware-level testing in your specific lab environment remains absolutely mandatory before initiating any wide-scale deployment.
