Fiber optic termination is the process of attaching a connector or performing a splice to the end of a fiber optic cable, ensuring a stable, low-loss path for optical signals.
Choosing the correct method is essential for balancing signal integrity, installation speed, and long-term network reliability. This article explores the various methodologies, evaluating their strengths and specific application requirements within FTTH deployments.
H2 | What is Fiber Optic Termination?
H2 | What are the different types of fiber optic termination?
H2 | Comparing Mechanical and Fusion Splicing
H2 | Which is better: Connector Termination or Splice Termination?
Optical cable termination is the critical procedure of securing the end of a fiber optic cable to a connector, adapter, or another fiber, enabling the signal to be transmitted into network equipment or linked continuously through the infrastructure.
The fundamental goal of this process is to ensure that light signals travel with minimal disruption, attenuation, or reflection back to the source. Without proper termination, the microscopic ends of the glass fibers would be exposed, vulnerable to dust, misalignment, and physical damage, leading to significant signal degradation. By employing high-quality optical transmission solutions, engineers can guarantee that the light path remains clear and efficient.

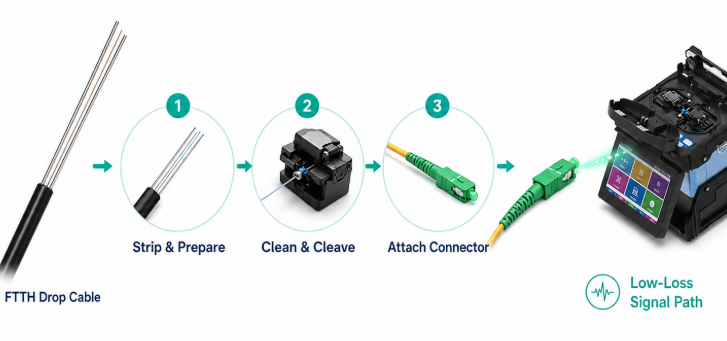

In professional network deployment, this process involves meticulously stripping the protective coating, cleaning the glass, and preparing the end-face to meet specific optical standards. Whether creating a permanent connection or a field-swappable interface, termination defines the ultimate quality of the link. It is the bridge that turns raw cable into a functional data highway, supporting everything from residential internet to enterprise-grade data centers.
For field technicians, understanding the intricacies of this stage is vital. Proper preparation, including precise cleaving and cleansing with appropriate solvents, prevents common issues such as high insertion loss or return loss. Reliable connectivity is not just about the quality of the glass; it is about how effectively that glass is terminated at every junction point.
Fiber optic termination types are broadly categorized into two main groups: mechanical terminations, which allow for temporary connections via connectors, and permanent joints created through splicing methods.
Mechanical termination often involves the use of field-installable connectors. These connectors are designed to align and secure the fiber end-face within a ferrule, allowing for the quick plugging and unplugging of cables into devices like an optical network terminal. These are frequently used in scenarios where flexibility or frequent changes in the network configuration are required, such as at the customer premises or within a distribution frame.
Conversely, splice termination is categorized by the physical joining of two fibers to create a permanent, low-loss link. This includes both fusion splicing—where fiber ends are melted together—and mechanical splicing, which utilizes a precision housing and index-matching gel to align the fibers. These methods are preferred for long-haul infrastructure or situations where high signal integrity is paramount, as they minimize the signal reflection that can occur at connector interfaces.
When designing an FTTH project, technicians must evaluate which method suits the installation environment. For example, some connectors use an epoxy-and-polish process, which requires high skill but offers extreme durability, while others are "no-polish" designs that prioritize speed. Each method has distinct trade-offs in terms of tool requirements, skill levels, and optical performance.
Fusion splicing is the industry-standard method for permanent fiber joining, providing the lowest insertion loss, while mechanical splicing is a temporary or emergency alternative that offers faster deployment at the cost of higher signal attenuation.
The following table provides a clear comparison to help in decision-making:
Feature | Fusion Splicing | Mechanical Splicing |
Insertion Loss | Very Low (< 0.1 dB) | Moderate (0.2 - 0.5 dB) |
Durability | High (Permanent) | Moderate |
Skill Level | High | Low |
Equipment Cost | High | Low |
Ideal Use | Long-haul & FTTH backbone | Repairs & Emergency links |
Fusion splicing operates by using an electric arc to fuse two fibers into a single, seamless strand. This process creates a joint that is virtually identical to the original fiber in terms of its refractive index and physical strength. Because there is no internal interface, the light passes through with negligible reflection. This makes it the superior choice for high-bandwidth applications where data integrity cannot be compromised.
Mechanical splicing, on the other hand, relies on physical alignment and index-matching gel to bridge the gap between two fibers. While it does not require an expensive fusion splicer, the joint is never as strong as a fused one and is susceptible to environmental changes over time. It is a highly practical solution for technicians who need to perform quick repairs in the field without carrying heavy, sensitive equipment.
In the context of how to properly manage network connections, choosing the right splicing method depends on the project's long-term goals. For permanent, high-performance FTTH deployments, fusion splicing remains the gold standard, ensuring the network remains reliable for years to come.
Choosing between connector termination and splice termination depends entirely on the specific installation requirement: choose connectors for modularity and flexibility, or choose splicing for maximum performance and permanent infrastructure.
The debate between these two approaches is common in FTTH planning. Connectors are indispensable when the fiber needs to connect to hardware, such as routers or optical patch panels. The convenience of being able to disconnect and reconnect is vital for maintenance and network troubleshooting. However, every connection point introduces potential for light loss, meaning that excessive use of connectors can weaken the overall signal budget of a long line.
Splice termination is the silent powerhouse of the network. Because it creates a continuous physical link, it is far more reliable over long distances and significantly reduces the maintenance burden. In an FTTH deployment, the main trunk lines are almost exclusively spliced to ensure consistent, high-speed performance for every household. You can learn more about the best practices for setting up these links in our guide on managing your optical network terminal connections.
Ultimately, a robust network uses both. Splicing is used for the permanent backbone and distribution segments, while connectors are utilized at the final drop points to allow the subscriber's equipment to be easily attached or removed. Balancing these two methods ensures that the network is both high-performing and highly manageable, providing the scalability needed for future technology upgrades.
Evaluating termination methods for FTTH is not merely about choosing the fastest tool; it is about designing a network that ensures reliability, maintains low signal loss, and remains manageable over its lifecycle. While fusion splicing leads in performance, the strategic use of connectors is essential for flexible, modular network architecture. By understanding the unique requirements of each method, installers can deliver superior connectivity that meets the high-speed demands of modern users.
