The rapid expansion of global broadband infrastructure has placed Passive Optical Network (PON) technology at the forefront of the telecommunications industry. As businesses and residential areas demand higher bandwidth and more reliable connectivity, service providers are constantly evaluating the most efficient ways to deliver high-speed internet. Among the various standards available, EPON (Ethernet Passive Optical Network) and GPON (Gigabit Passive Optical Network) have emerged as the two dominant technologies. While both utilize fiber optic cables and splitters to deliver data, they operate on different protocols and offer distinct advantages depending on the specific network requirements.
The fundamental difference between EPON and GPON lies in their underlying protocols and bandwidth efficiency: GPON is based on the ITU-T G.984 standard, offering a downstream rate of 2.488 Gbps and supporting sophisticated multi-service transport, whereas EPON is based on the IEEE 802.3ah standard, providing a symmetrical 1.25 Gbps rate and utilizing native Ethernet frames for simpler, cost-effective data transmission.
Choosing the right technology requires a deep dive into technical specifications, cost structures, and future scalability. This guide provides a comprehensive comparison to help network engineers and B2B decision-makers understand which solution aligns best with their infrastructure goals. From protocol architecture to Quality of Service (QoS), we will explore the nuances that define these two optical giants.
Section | Summary |
Understanding PON, GPON, and EPON | An introductory overview of Passive Optical Network technology and the specific standards that define EPON and GPON. |
GPON vs EPON: A Deployment-Focused Comparison | A detailed analysis of bandwidth, split ratios, and transmission efficiency in real-world networking scenarios. |
Protocol Architecture: The Root of QoS Differences | An exploration of how Ethernet-based and GEM-based encapsulation affects data handling and service quality. |
Future Trends: Different Paths to 10G PON | A look at the evolution of these technologies toward 10G-EPON and XG-PON to meet increasing data demands. |
How to Choose Between GPON and EPON | A strategic guide for businesses to select the optimal equipment based on cost, scale, and service variety. |
Passive Optical Network (PON) technology is a point-to-multipoint fiber architecture that uses unpowered optical splitters to enable a single optical fiber to serve multiple endpoints, with EPON and GPON serving as the two primary industry standards defined by the IEEE and ITU-T respectively.

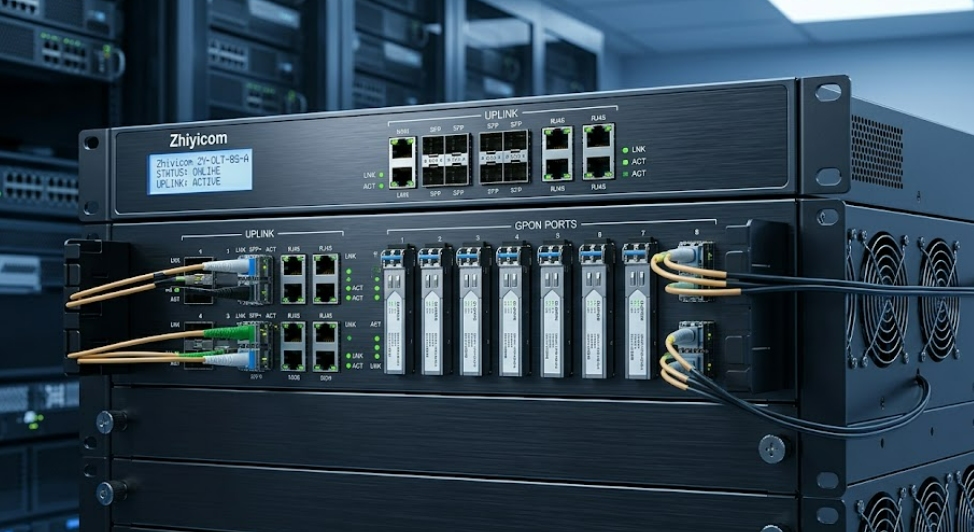

PON technology revolutionized the "last mile" of telecommunications by eliminating the need for active electronic components between the central office and the end-user. By using passive splitters, providers can significantly reduce maintenance costs and power consumption. Within this framework, a GPON OLT (Optical Line Terminal) serves as the starting point in the provider's data center, distributing signals to various Optical Network Units (ONUs) located at the customer premises.
EPON was developed by the IEEE as part of the 802.3ah "Ethernet in the First Mile" project. Its primary goal was to extend the reach of Ethernet technology into the access network, maintaining a seamless connection with existing local area networks (LANs). Because it uses standard Ethernet frames, it is highly compatible with modern IP-based equipment, making it a popular choice for data-centric providers who prioritize simplicity and low equipment costs.
GPON, governed by the ITU-T G.984 series, was designed from the ground up to be a true multi-service access standard. Unlike EPON, which treats everything as Ethernet traffic, GPON utilizes the GPON Encapsulation Method (GEM). This allows it to package not just Ethernet, but also TDM (Time Division Multiplexing) and ATM (Asynchronous Transfer Mode) traffic natively. This versatility makes it the preferred choice for legacy carriers who need to support traditional voice services alongside high-speed data.
When comparing deployment capabilities, GPON offers higher downstream bandwidth and more efficient overhead management than EPON, making it more suitable for high-density environments despite the higher initial hardware investment.
One of the most significant metrics in B2B fiber networking is the transmission rate. EPON provides a symmetrical bandwidth of 1.25 Gbps for both upstream and downstream. However, due to 8b/10b line coding, the actual useful data rate is closer to 1 Gbps. In contrast, GPON provides an asymmetrical rate, typically 2.488 Gbps downstream and 1.244 Gbps upstream. This higher downstream capacity is particularly beneficial for modern internet usage patterns, where download demands far exceed upload requirements.
The efficiency of these systems also differs in terms of the split ratio. The split ratio determines how many subscribers can be served by a single fiber port on the GPON OLT.
EPON typically supports a split ratio of 1:32, although some modern implementations reach 1:64.
GPON commonly supports 1:64 or even 1:128 split ratios, allowing for higher subscriber density per port.
The higher split ratio in GPON helps reduce the cost of fiber cabling and central office equipment over a larger user base.

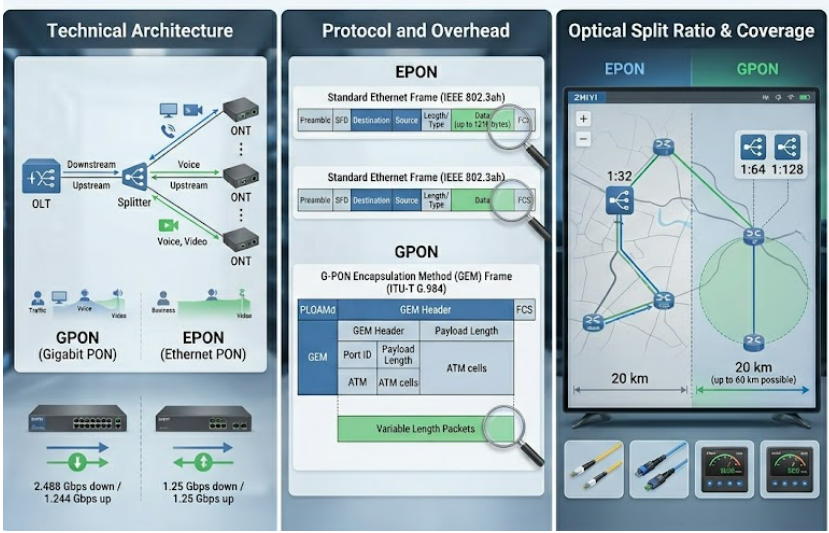

The following table summarizes the core technical specifications:
Feature | EPON (IEEE 802.3ah) | GPON (ITU-T G.984) |
Downstream Rate | 1.25 Gbps | 2.488 Gbps |
Upstream Rate | 1.25 Gbps | 1.244 Gbps |
Efficiency | ~72% (8b/10b encoding) | ~94% (GEM encapsulation) |
Max Split Ratio | 1:32 / 1:64 | 1:64 / 1:128 |
Layer | Data Link Layer (Layer 2) | Physical/Transmission Layer |
Understanding these differences is crucial when evaluating equipment. For those interested in how these technologies compare to other variations like XPON, you can read more about what is the difference between GPON and XPON ONU to gain a broader perspective on hardware compatibility.
The fundamental technical distinction lies in their protocol stacks: EPON relies on pure Ethernet frames which simplifies data handling, while GPON uses a more complex GEM-based frame structure that enables superior Quality of Service (QoS) and multi-service synchronization.
EPON operates entirely within the Ethernet domain. This means that data travels from the GPON OLT to the ONU without the need for complex conversion or encapsulation. While this simplicity reduces the cost of the chips and hardware, it offers limited native support for sophisticated traffic management. QoS in EPON is typically managed through higher-layer protocols or VLAN priorities, which may not be as granular as those required for mission-critical industrial applications or high-definition broadcast services.
GPON utilizes a unique architecture called the Transmission Convergence (TC) layer. Within this layer, the GPON Encapsulation Method (GEM) fragments data into fixed-size cells. This is a critical feature because it allows the network to prioritize different types of traffic with extreme precision. For instance, voice traffic, which is highly sensitive to delay, can be prioritized over standard web browsing data at a very low level in the protocol stack.
Key advantages of the GPON protocol architecture include:
Strict Timing: GPON provides excellent synchronization for legacy TDM services, ensuring that old-school telephony functions perfectly over a modern fiber line.
Dynamic Bandwidth Allocation (DBA): While both systems support DBA, GPON’s implementation is generally more robust, allowing providers to oversubscribe their bandwidth more aggressively while maintaining service level agreements (SLAs).
Security: GPON includes integrated AES (Advanced Encryption Standard) for both upstream and downstream traffic, whereas EPON often requires additional layers for similar security parity.
As the demand for bandwidth exceeds the gigabit threshold, both technologies are evolving into 10-Gigabit versions, with 10G-EPON offering a straightforward upgrade path for Ethernet networks and XG-PON/XGS-PON providing a high-performance successor for the GPON ecosystem.
The industry is currently transitioning toward 10G-PON to accommodate technologies like 4K/8K streaming, cloud computing, and 5G backhaul. For EPON users, the path forward is 10G-EPON (IEEE 802.3av). This standard is designed to be backward compatible with existing EPON deployments, allowing 1G and 10G ONUs to coexist on the same fiber tree. This protects the initial investment while providing a clear roadmap for scaling bandwidth.

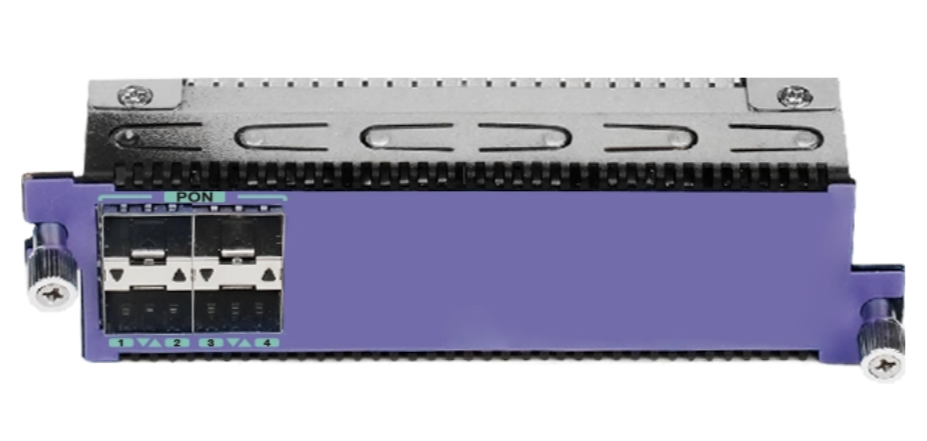

On the ITU-T side, the evolution led to XG-PON (10G downstream, 2.5G upstream) and subsequently XGS-PON (symmetrical 10G). XGS-PON is rapidly becoming the industry standard for high-end residential and enterprise fiber because it matches the symmetrical bandwidth demands of modern cloud-based businesses. Modern GPON OLT units are often being replaced or supplemented by Combo-PON boards that can support both GPON and XGS-PON simultaneously.
Future infrastructure planning often involves:
Coexistence: Utilizing WDM (Wavelength Division Multiplexing) to run 1G and 10G signals over the same physical fiber.
Software-Defined Networking (SDN): Moving the control plane of the OLT to the cloud to allow for more flexible service provisioning.
Increased Power Efficiency: Newer chipsets in 10G equipment are focusing heavily on reducing the Watts-per-Gigabit ratio to meet corporate sustainability goals.
Choosing between GPON and EPON depends largely on the service provider's existing infrastructure, budget, and service goals: EPON is often the better choice for cost-sensitive, data-only deployments, while GPON is superior for high-density, multi-service networks requiring strict QoS.
When making a procurement decision for a GPON OLT or related equipment, one must weigh the "Cost vs. Performance" ratio. EPON hardware is generally 10% to 20% cheaper than GPON hardware because the chips are less complex. This makes EPON an attractive option for smaller ISPs or private campus networks where pure internet access is the only requirement. Furthermore, the administrative overhead for EPON is lower because it uses familiar Ethernet management systems.
However, for large-scale deployments where fiber conservation is a priority, the higher split ratio and efficiency of GPON often result in a lower total cost of ownership (TCO) over the long term. If your business model includes offering "Triple Play" services (Voice, Video, and Data), the native multi-service capabilities of GPON will save significant time and resources in network configuration and troubleshooting.
Consider the following factors before finalizing your choice:
Service Type: If you are primarily providing internet and IPTV, EPON may suffice. If you need to integrate legacy phone systems or high-tier SLAs for business clients, GPON is the industry standard.
Subscriber Density: In highly populated urban areas, the 1:128 split ratio of GPON allows you to serve more customers with fewer fiber runs.
Scalability: If you anticipate a rapid need for 10G speeds, evaluate the local availability and cost of XGS-PON versus 10G-EPON equipment in your region.
