The global demand for high-speed internet has skyrocketed over the last decade, pushing traditional copper-based infrastructures to their absolute limits. As businesses and residential users alike transition toward data-intensive applications like 4K streaming, cloud computing, and massive IoT deployments, the telecommunications industry has turned toward fiber optics. Among the various technologies available, Gigabit Passive Optical Network, or GPON, has emerged as the leading standard for delivering "Fiber to the Home" (FTTH) and "Fiber to the Premises" (FTTP) services.
GPON is a point-to-multipoint access technology that provides high-speed broadband access over a passive optical fiber network, utilizing an IP-based protocol to deliver integrated voice, data, and video services at downstream speeds of up to 2.488 Gbps and upstream speeds of 1.244 Gbps. It relies on a GPON OLT located in the central office to manage traffic and distribute signals to multiple end-users through passive splitters.
This technology represents a significant leap forward from older DSL or cable modem systems. By utilizing light instead of electrical signals and removing active, power-hungry components from the distribution path, GPON offers a more sustainable, scalable, and cost-effective solution for modern telecommunications providers. In this comprehensive guide, we will explore the architecture of GPON, the critical role of the GPON OLT, and how this technology continues to shape the future of global connectivity.
What is GPON?
How does GPON work?
What are the various components of GPON?
What are the advantages and disadvantages of GPON?
FAQ
GPON, which stands for Gigabit Passive Optical Network, is a fiber-optic communications standard defined by the ITU-T that enables the delivery of high-speed data, voice, and video over a single fiber using a point-to-multipoint architecture.
GPON is the evolution of previous passive optical network standards, designed specifically to handle the massive influx of IP traffic in the 21st century. Unlike older systems that relied on ATM (Asynchronous Transfer Mode), GPON uses GEM (GPON Encapsulation Method), which allows it to package diverse types of traffic—such as Ethernet and TDM—efficiently. This flexibility makes it the preferred choice for telecommunications operators looking to consolidate their service offerings into a single "triple-play" delivery mechanism.
The "Passive" in GPON is a critical distinction. In a passive network, there are no electrically powered components between the service provider’s central office and the end-user's premises. Instead, the signal is split using unpowered optical splitters. This reduces the need for expensive climate-controlled enclosures in the field and significantly lowers the operational costs associated with power consumption and hardware maintenance.
The core of any GPON deployment is the GPON OLT (Optical Line Terminal). The OLT serves as the primary engine, communicating with various Optical Network Units (ONUs) at the subscriber end. Because a single GPON OLT port can support up to 64 or even 128 subscribers through splitting, it is an incredibly efficient way to deploy high-speed internet to densely populated urban and suburban areas.

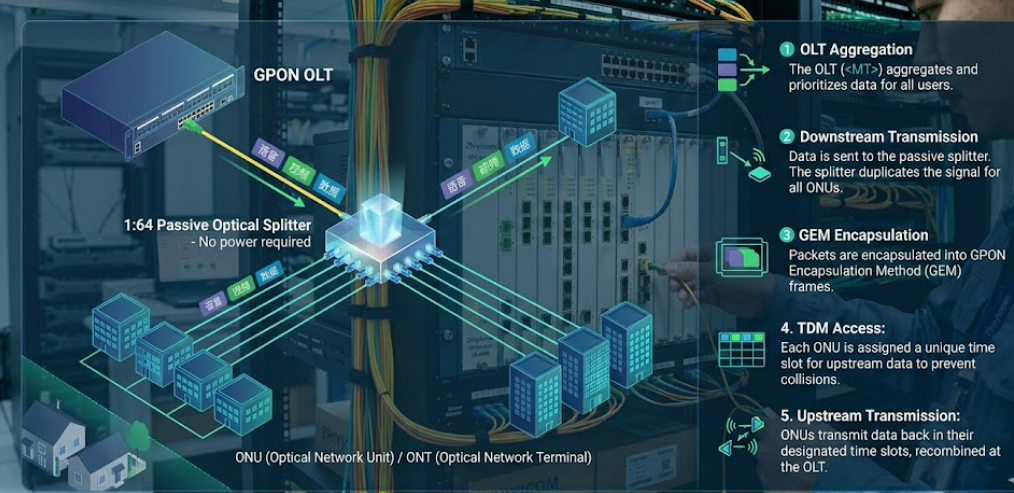

GPON works by using Wavelength Division Multiplexing (WDM) to transmit data in both directions over a single strand of fiber, utilizing specific wavelengths for downstream and upstream traffic while employing a point-to-multipoint physical topology.
In the downstream direction (from the GPON OLT to the user), the network functions as a broadcast system. The GPON OLT sends data packets to all connected users on a specific wavelength, typically 1490 nm. Every Optical Network Unit (ONU) receives the entire stream, but because each packet is encrypted and tagged with a specific ID, the ONU only "opens" and processes the data intended for its specific user. This ensures security and privacy despite the shared nature of the physical medium.
The upstream direction (from the user back to the GPON OLT) is more complex because multiple users must share the same fiber without causing signal collisions. To manage this, GPON uses Time Division Multiple Access (TDMA). The GPON OLT acts as the conductor of an orchestra, assigning specific "time slots" to each ONU. During its assigned slot, an ONU bursts its data at a wavelength of 1310 nm. This precise synchronization prevents data packets from overlapping and ensures a smooth flow of traffic back to the core network.
Furthermore, GPON supports Dynamic Bandwidth Allocation (DBA). This feature allows the GPON OLT to monitor traffic demands in real-time. If one user is idle while another is downloading a large file, the GPON OLT can temporarily reallocate the unused bandwidth to the active user. This intelligent management ensures that the 2.488 Gbps capacity is used as efficiently as possible, providing a high-quality experience even during peak usage hours.
The various components of a GPON network include the Optical Line Terminal (OLT) at the provider’s side, the Optical Network Unit (ONU) or Terminal (ONT) at the user’s side, and the Optical Distribution Network (ODN) which consists of fiber cables and passive splitters.

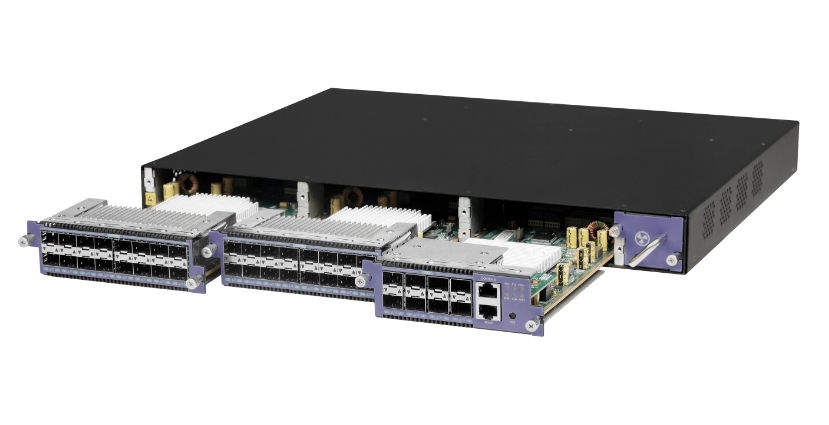

The GPON OLT is the most vital piece of equipment in the network. Located in the provider's central office or data center, the GPON OLT connects the fiber access network to the wider internet backbone. It manages the conversion of electrical signals into optical signals and coordinates the timing for all downstream and upstream transmissions. High-quality GPON OLT units are designed for high density, allowing a single chassis to manage thousands of subscribers simultaneously.
The ONU or ONT is the device located at the end-user's location. It receives the optical signal from the GPON OLT and converts it back into electrical signals that can be used by routers, computers, and telephones. While the terms are often used interchangeably, an ONT is typically located at the customer premises (Home), while an ONU might be located in a basement or a curb (Building/Curb) to serve multiple residents via Ethernet or copper.
The ODN represents the physical path between the GPON OLT and the ONU. It is comprised strictly of passive components.
Feeder Fiber: The main fiber line coming from the GPON OLT.
Optical Splitters: Passive devices that divide the light signal into multiple paths (e.g., 1:32 or 1:64).
Distribution Fiber: The fiber lines that run from the splitters toward individual homes or businesses.
Component | Location | Function | Powered? |
GPON OLT | Central Office | Core management and signal conversion | Yes |
Optical Splitter | Field/Cabinet | Distributes signal to multiple users | No |
ONU / ONT | User Premises | Converts optical signal to Ethernet/Voice | Yes |
Fiber Cable | Everywhere | Medium for light transmission | No |
The advantages of GPON include its massive bandwidth capacity, low maintenance costs, and energy efficiency, while its disadvantages include the shared nature of the bandwidth and the high cost of specialized fiber installation equipment.
High Bandwidth Efficiency: GPON offers a much higher split ratio and more efficient data encapsulation than previous technologies. This allows the GPON OLT to serve more customers with less fiber, maximizing the return on investment for service providers.
Passive Nature: Since the distribution network requires no electricity, there are fewer points of failure. Providers do not need to worry about power outages in the field affecting the signal between the GPON OLT and the user, leading to higher reliability.
Long Reach: GPON can transmit data over distances of up to 20 kilometers (and even up to 60km with logical reach). This is significantly further than traditional copper-based systems, which suffer from signal degradation after just a few hundred meters.
Triple Play Integration: A single GPON OLT can manage data, VoIP (Voice over IP), and IPTV services simultaneously, simplifying the network architecture.
Shared Bandwidth: Because a single GPON OLT port is split among many users, the total 2.488 Gbps is shared. If every user on a 1:64 split attempts to download at maximum capacity at the same time, individual speeds will drop.
Sensitivity to Physical Damage: Fiber optic cables are more fragile than copper and require specialized tools for splicing and repair. If a main feeder fiber is cut, it can take down service for hundreds of customers connected to that specific GPON OLT port.
Complex Initial Setup: The initial deployment of fiber requires significant capital expenditure (CAPEX) for trenching and installing the GPON OLT infrastructure, even if the long-term operational costs (OPEX) are lower.
GPON provides a maximum downstream rate of 2.488 Gbps and an upstream rate of 1.244 Gbps. However, it is important to remember that these are aggregate speeds shared across all users connected to a single port on the GPON OLT. Individual user speeds are typically governed by the service plan purchased from the ISP.
Standard GPON supports a split ratio of up to 1:128. However, most service providers opt for a 1:32 or 1:64 split to ensure that each user receives a high-quality, high-speed connection without excessive congestion during peak hours.
While both are passive optical network technologies, GPON is based on the ITU-T standard and uses GEM encapsulation, while EPON (Ethernet Passive Optical Network) is based on the IEEE standard and uses native Ethernet frames. GPON generally offers higher speeds and better efficiency for non-data traffic compared to EPON.
In a perfect world, yes, but in practice, compatibility can be an issue. While the GPON standard is universal, different manufacturers may implement specific management features (OMCI) differently. It is usually recommended to use an ONU that is certified to work with your specific GPON OLT model to ensure full functionality.
They serve different purposes. 5G is excellent for mobility and wireless access, but GPON (fixed fiber) remains the gold standard for stability, low latency, and consistent high speeds. In fact, many 5G cell towers rely on GPON OLT backhaul to handle the massive amounts of data they receive from mobile devices.
