How many times can you split GPON ​？

The telecommunications industry has undergone a massive transformation with the implementation of Passive Optical Network (PON) technology. As businesses and residential areas demand higher bandwidth, understanding the architectural limits of Gigabit Passive Optical Networks (GPON) becomes essential for network engineers and B2B procurement specialists.

A standard GPON port can typically be split up to 64 times, although the technology theoretically supports a split ratio of up to 1:128. This capability allows a single fiber from the GPON OLT to serve multiple end users, significantly reducing the cost of infrastructure and cabling.

In the following sections, we will explore the technical nuances of optical power budgets, the impact of high split ratios on per-user bandwidth, and how to optimize your GPON OLT deployment for maximum efficiency. This comprehensive guide will provide the insights needed to design a scalable and robust fiber network.

Table of Contents

1. Understanding GPON Split Ratios

2. The Role of GPON OLT in Fiber Splitting

3. Technical Constraints: Optical Power Budget

4. Impact of Splitting on Bandwidth Allocation

5. Choosing Between Centralized and Cascaded Splitting

6. Best Practices for GPON Network Optimization

Understanding GPON Split Ratios

The split ratio in a GPON network refers to the number of Optical Network Units (ONUs) that can be connected to a single GPON OLT port, with 1:64 being the industry standard for most reliable deployments.

In a Passive Optical Network, the "passive" element refers to the fact that the distribution network operates without any electrical power. This is achieved through optical splitters. While the GPON standard (ITU-T G.984) allows for a theoretical maximum of 128 splits, most network designers opt for a 1:64 ratio to balance performance and distance.

The decision to split the signal 32, 64, or 128 times depends heavily on the geographic density of the customers. In high-density urban environments, a 1:128 split might be used to maximize the utility of a single GPON OLT port. However, in rural areas where the distance between the OLT and the user is greater, a 1:32 split is often preferred to ensure the optical signal remains strong enough to be decoded at the destination.

Furthermore, the physical split is usually achieved using PLC (Planar Lightwave Circuit) splitters. These devices take the single incoming light beam and divide it into multiple outgoing paths. Understanding the mathematical loss associated with these splits is the first step in successful network planning.

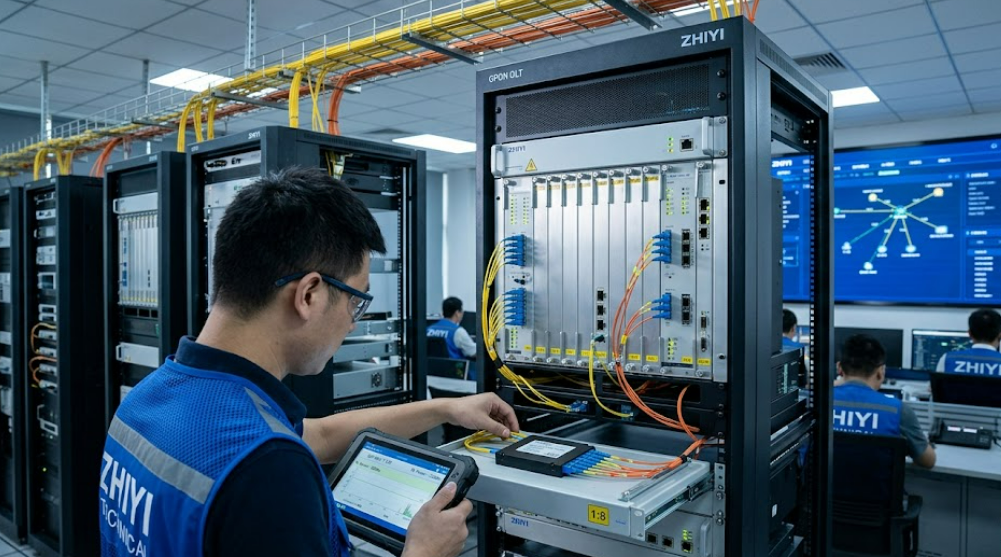

The Role of GPON OLT in Fiber Splitting

The GPON OLT acts as the central brain of the network, managing the broadcast of downstream data to all split users and the coordinated upstream bursts from individual terminals.

The GPON OLT is located in the Central Office or a localized hub. It is responsible for converting the electrical signals from the service provider's core network into optical signals. When a single fiber leaves a GPON OLT port, it carries data intended for all 64 or 128 users associated with that port. The OLT uses Time Division Multiple Access (TDMA) to ensure that upstream data from different users does not collide.

Without a high-performance GPON OLT, managing high split ratios would be impossible. The OLT must handle the ranging process, which measures the distance to each ONU to synchronize timing. This is crucial because even a slight overlap in signal transmission from two different houses would cause data corruption. For more details on how these components interact, you can learn about What is ONT, GPON OLT vs ONU vs ONT.

Modern GPON OLT equipment is designed to handle high-density line cards. This means a single chassis can support thousands of customers by utilizing multiple ports, each split 64 ways. The efficiency of the GPON OLT in managing these splits directly impacts the latency and Quality of Service (QoS) experienced by the end-user.

Technical Constraints: Optical Power Budget

The primary limiting factor for GPON splitting is the optical power budget, as each 1:2 split introduces a theoretical loss of approximately 3 dB, significantly reducing the signal's reach.

Optical power budget is the difference between the transmitter's output power at the GPON OLT and the receiver's sensitivity at the ONU. In a typical GPON Class B+ setup, the budget is around 28 dB. If you exceed this loss, the connection will drop or fail to register.

Every time you split the fiber, the light intensity is halved. In a 1:64 split scenario, the cumulative loss from the splitters alone is roughly 18 to 20 dB. When you add the loss from the fiber cable itself (roughly 0.35 dB per kilometer), connectors, and splices, you quickly approach the 28 dB limit.

Breakdown of Typical Optical Losses

By calculating these values, engineers can determine if a 1:128 split is feasible. If the distance is short (less than 5km), a 1:128 split might work. However, for a standard 20km GPON reach, a 1:64 split is the maximum safe threshold to account for aging fiber and environmental factors.

Impact of Splitting on Bandwidth Allocation

As the split ratio increases, the available bandwidth per user decreases, because the total 2.5 Gbps downstream capacity of a GPON OLT port must be shared among all connected ONUs.

GPON provides a total downstream capacity of approximately 2.488 Gbps and an upstream capacity of 1.244 Gbps. While this sounds like a massive amount of data, it is a shared medium. If you split a port 64 times, the "guaranteed" average bandwidth per user during peak times is significantly lower than if you split it 32 times.

1. Peak Demand Scenarios: In a 1:64 split, if every user tries to download at once, the bandwidth per user is roughly 38 Mbps. While Dynamic Bandwidth Allocation (DBA) helps by giving more speed to active users and less to idle ones, a 1:128 split would reduce that peak average to about 19 Mbps.

2. Service Level Agreements (SLAs): For business-class services, providers often use lower split ratios (like 1:16 or 1:32) to ensure that the GPON OLT can deliver higher committed information rates.

3. Future Proofing: As 4K/8K streaming and cloud computing become standard, high split ratios on standard GPON may lead to congestion. This is why many operators are now looking at XGS-PON, which offers 10 Gbps, to maintain high split ratios without sacrificing user experience.

The GPON OLT uses sophisticated algorithms to manage this sharing. It prioritizes voice and video traffic over general web browsing, ensuring that even with a high split ratio, essential services remain functional and lag-free.

Choosing Between Centralized and Cascaded Splitting

Network designers must choose between centralized splitting, where all splits happen in one location, and cascaded splitting, where multiple smaller splitters are distributed throughout the network.

Centralized splitting typically involves a single 1:64 splitter located in a primary distribution hub. This approach is easier to manage and troubleshoot because all the optical connections are in one place. It is ideal for high-density apartment buildings where the GPON OLT can be connected to a single large splitter in the basement.

Cascaded splitting (also known as distributed splitting) uses multiple levels of splitters, such as a 1:4 splitter followed by several 1:16 splitters. This method saves a significant amount of fiber cable because a single fiber can be run deep into a neighborhood before being branched out. However, every level of cascading adds more points of failure and slightly higher insertion loss due to extra connectors.

Comparison Table: Centralized vs. Cascaded

Choosing the right strategy depends on the local geography and the capabilities of the GPON OLT management system. Most modern deployments use a mix of both to optimize cost and performance.

Best Practices for GPON Network Optimization

To maximize the number of times you can split GPON without degrading service, it is critical to use high-quality components and perform rigorous optical testing during installation.

The success of a high-split network depends on the "cleanliness" of the installation. Even a small amount of dust on a connector can introduce 1-2 dB of loss, which might be the difference between a working 1:64 split and a failed one. Using high-grade GPON OLT equipment that provides real-time optical power monitoring is essential for proactive maintenance.

1. Regular Inspection: Use fiber microscopes to check connectors before plugging them into the splitters or the GPON OLT.

2. Budget Buffering: Always design your network with a 2-3 dB "safety margin." This allows for future repairs (splices) or slight degradation of the fiber over time without causing an outage.

3. Advanced Monitoring: Utilize the management features of your GPON OLT to monitor the RSSI (Received Signal Strength Indicator) of every connected ONU. If one user's signal drops, it may indicate a localized problem with a specific splitter branch.

By following these professional standards, service providers can confidently push their GPON architectures to the limit, providing high-speed internet to more users with less infrastructure.
